£134.99
excl. VAT
£161.99 incl. VAT
£161.99
incl. VAT
£134.99 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 117000 N |
| Basic radial load static | 118000 N |

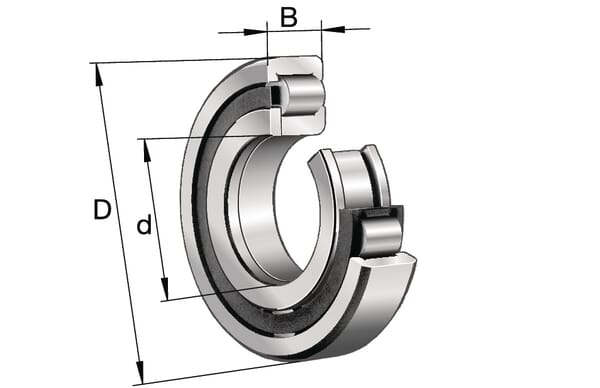

| Bearing model type | Cylindrical roller bearings |
| BWidth | 25 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 55 mm |
| DOutside diameter | 100 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP2211-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 7000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012801023023 |
|---|---|
| Unit of measure | EA |
| Weight | 868 g |
| Dimensions | 104 × 103 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000150151
FAG Deep groove ball bearing 30x55x13mm INA/FAG 6006HZZ
£59.33 excl.
£71.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285275
FAG Adaptor sleeve with nut 45x70x55mm H2310
£42.25 excl.
£50.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380666
FAG Housing unit UCFA UCFA207
£47.50 excl.
£57.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000072478
FAG Spherical roller bearing 30x62x20mm INA/FAG 22206E1XLKC3
£90.16 excl.
£108.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000086021

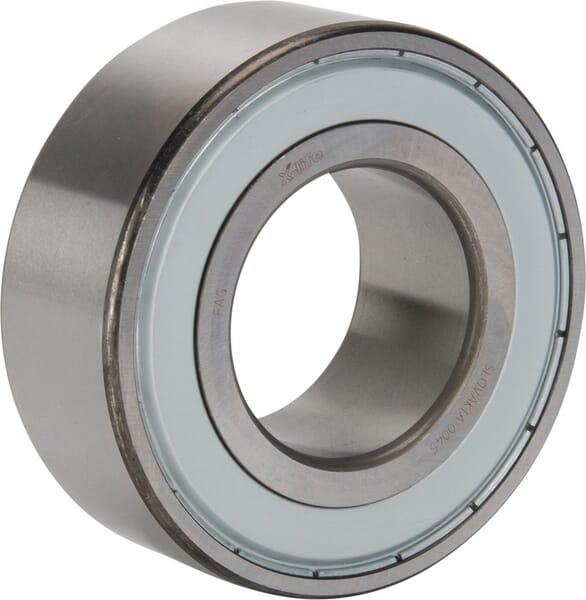

FAG Angular contact ball bearing 60x110x36.5mm INA/FAG 3212BDXL2ZTVH
