Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 77000 N |
| Basic radial load static | 81000 N |
| Bearing model type | Cylindrical roller bearings |

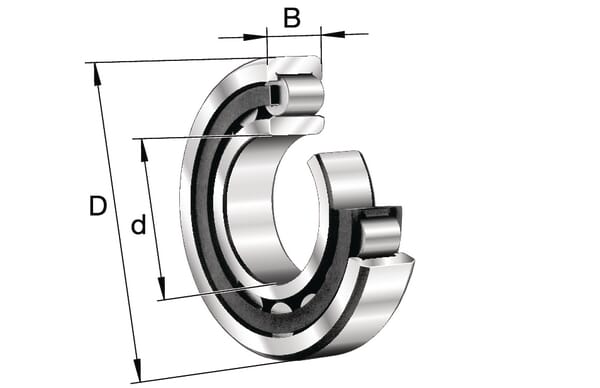

| BWidth | 20 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 70 mm |
| DOutside diameter | 110 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12300 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU1014-M1 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 11000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.678 kg |
Logistics
| EAN | 4012801022774 |
|---|---|
| Unit of measure | EA |
| Weight | 710 g |
| Dimensions | 120 × 115 × 25 mm |
| Dangerous goods | No |
