£393.61
excl. VAT
£472.33 incl. VAT
£472.33
incl. VAT
£393.61 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Small crop sprayers, Tedders, Windrowers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by tractor side | 61 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO drive shafts complete standard series W 2200 |
| Max static torque | 1850 N·m |
| Original number equivalent | 1800046 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | ST15 |
| Size code | W2200 |

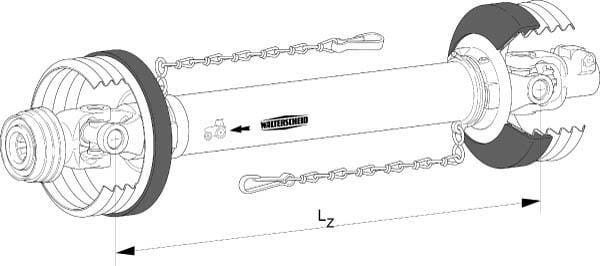

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 20 kW, 335 Nm, Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10500 g |
| Dimensions | 1390 × 165 × 165 mm |
| Dangerous goods | No |
You might also like
BPA000363725

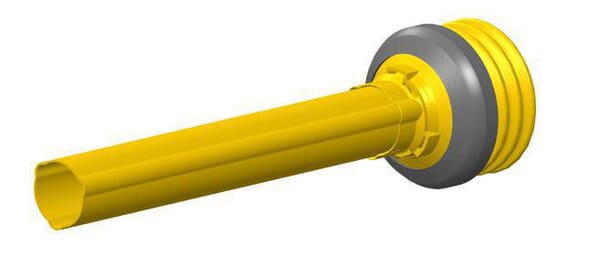

Walterscheid Guard half outer ST15 D158 ST151500A
£83.03 excl.
£99.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000141762
Walterscheid Friction clutch W2500 FK96/4R 150daNm 5813351150
£1,357.35 excl.
£1,628.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144883
Walterscheid KB61/20 Hub 1.3/4 M10 rad.64 572640
£302.03 excl.
£362.44 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000143528

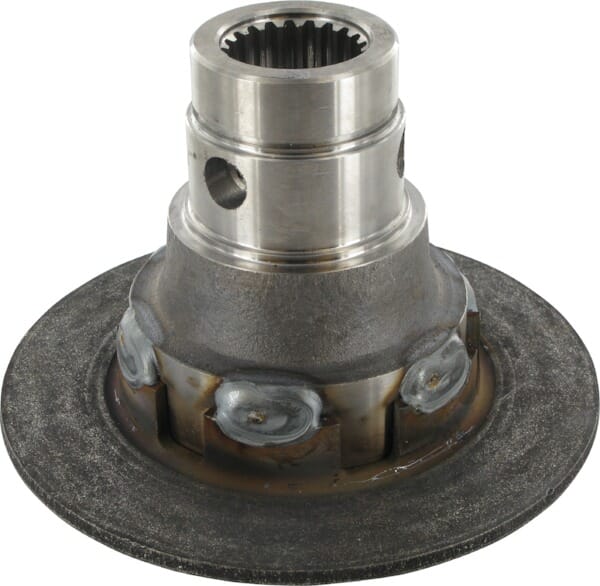

Walterscheid Hub K96/4 1.3/8-21spl 563106
