£242.07
excl. VAT
£290.48 incl. VAT
£290.48
incl. VAT
£242.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 242000 N |
| Basic radial load static | 222000 N |

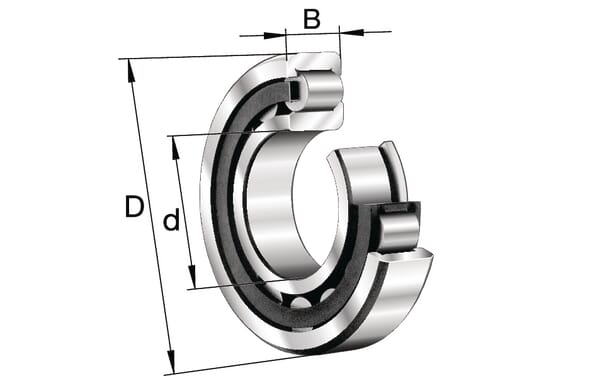

| Bearing model type | Cylindrical roller bearings |
| BWidth | 35 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 70 mm |
| DOutside diameter | 150 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 6300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ314-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 4500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.279 kg |
Logistics
| EAN | 4012801229418 |
|---|---|
| Unit of measure | EA |
| Weight | 2812 g |
| Dimensions | 157 × 157 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152263

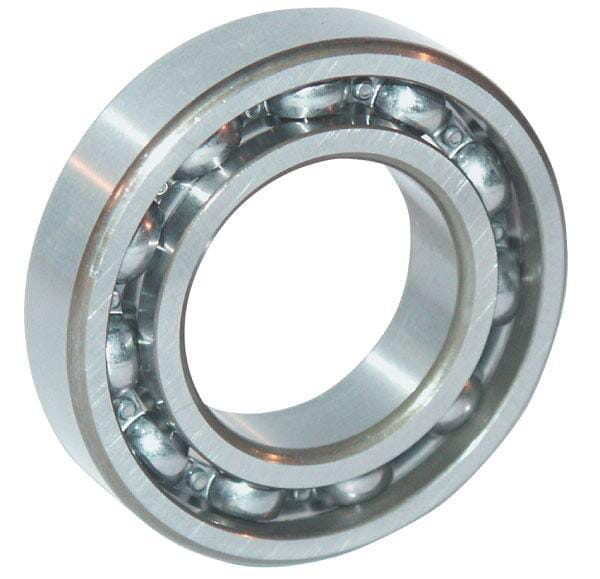

FAG Deep groove ball bearing 170x260x42mm INA/FAG 6034M
£597.32 excl.
£716.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380928
FAG Bearing insert 30x72x20mm INA/FAG UK207
£37.16 excl.
£44.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380686

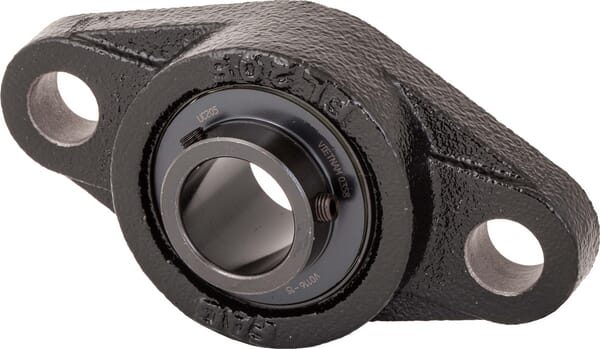

FAG Housing unit UCFL203J7
