£147.54
excl. VAT
£177.05 incl. VAT
£177.05
incl. VAT
£147.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 155000 N |
| Basic radial load static | 157000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 25 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 75 mm |
| DOutside diameter | 130 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 7500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU215-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 5300 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.125 kg |
Logistics
| EAN | 4012801233279 |
|---|---|
| Unit of measure | EA |
| Weight | 1296 g |
| Dimensions | 142 × 136 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326294
FAG Cylindrical roller bearing 75x130x25mm INA/FAG NU215EM1C3
£264.52 excl.
£317.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072336
FAG Self-aligning ball bearing 2212TVHC3
£100.91 excl.
£121.09 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000072594
FAG Spherical roller bearing 80x140x33mm INA/FAG 22216E1AXLKMC3
£292.49 excl.
£350.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067655
FAG Spherical roller bearing 90x190x43mm 21318K
£437.79 excl.
£525.35 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000155631
FAG Deep groove ball bearing 90x160x30mm INA/FAG 6218ZZC3
£154.96 excl.
£185.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000071029

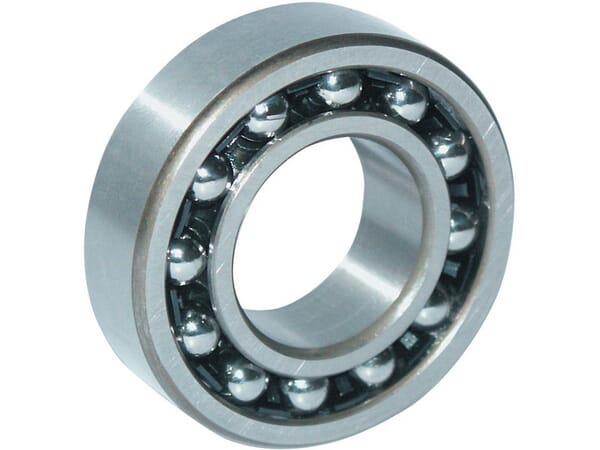

FAG Self-aligning ball bearing 75x160x55mm INA/FAG 2315KMC3
