£604.67
excl. VAT
£725.60 incl. VAT
£725.60
incl. VAT
£604.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft |
|---|---|
| Basic radial load dynamic | 435000 N |
| Basic radial load static | 445000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 60 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 85 mm |
| DOutside diameter | 180 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2317-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 3600 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 6.678 kg |
Logistics
| EAN | 4012801228992 |
|---|---|
| Unit of measure | EA |
| Weight | 6805 g |
| Dimensions | 188 × 188 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000072286
FAG Self-aligning ball bearing 50x90x23mm INA/FAG 22102RSTVH
£73.64 excl.
£88.37 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155314
FAG Deep groove ball bearing 20x47x14mm INA/FAG 6204RS
£5.43 excl.
£6.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000148845
FAG Deep groove ball bearing 12x28x8mm INA/FAG 6001
£3.61 excl.
£4.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000154237
FAG Deep groove ball bearing 30x90x23mm INA/FAG 6406
£39.84 excl.
£47.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000324987

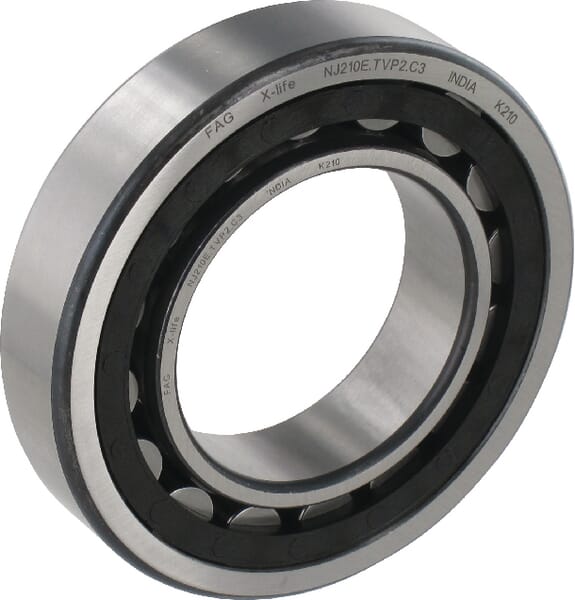

FAG Cylindrical roller bearing 50x90x20mm INA/FAG NJ210ETVP2C3
