£1,154.65
excl. VAT
£1,385.58 incl. VAT
£1,385.58
incl. VAT
£1,154.65 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Attachment machine side | Cam type cut out clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K64/22R |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4 |
| Length | 710 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2500 N·m |
| Max static torque | 6000 N·m |
| Original number equivalent | 1691375 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Protection type | SD25 |
| Size code | W2500 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 33220 g |
| Dimensions | 1000 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400862
Walterscheid PTO shaft W2500 L: 710mm with cam type cut out clutch, W25007105911743
£1,410.79 excl.
£1,692.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000226132

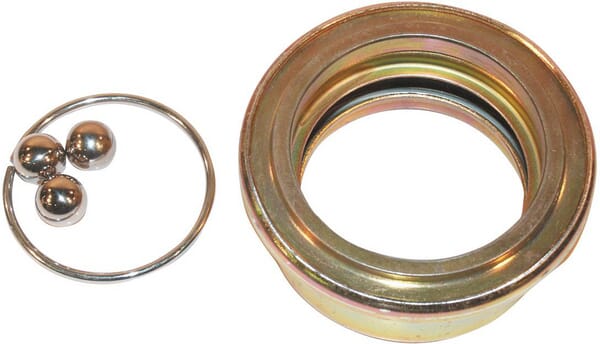

Walterscheid Agraset metal slide collar AG119
£62.69 excl.
£75.23 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000157601
Walterscheid Splined hub 80L 6x21x25 674016980
£229.33 excl.
£275.20 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000038201

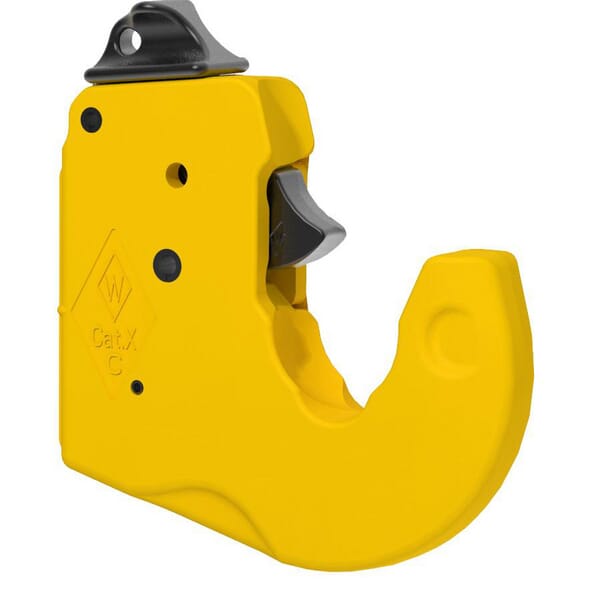

Walterscheid Lower link hook type C1 cat.1 1208552
£184.71 excl.
£221.65 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000033899

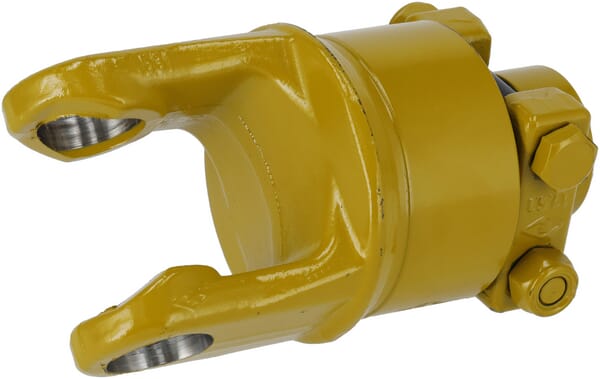

Walterscheid Standard overrun clutch F5/1L 1172706
£368.86 excl.
£442.63 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000226184

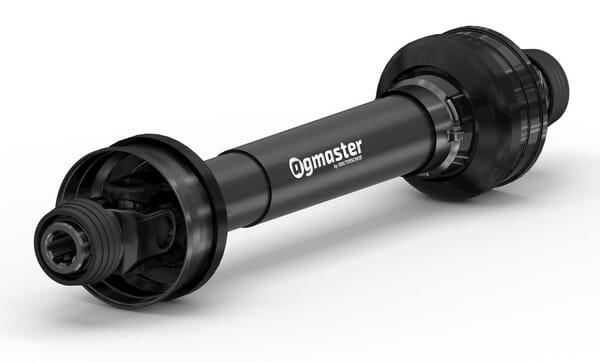

Walterscheid PTO shaft AGM1 length 1210 AGM11210
