£292.34
excl. VAT
£350.81 incl. VAT
£350.81
incl. VAT
£292.34 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 242000 N |
| Basic radial load static | 222000 N |

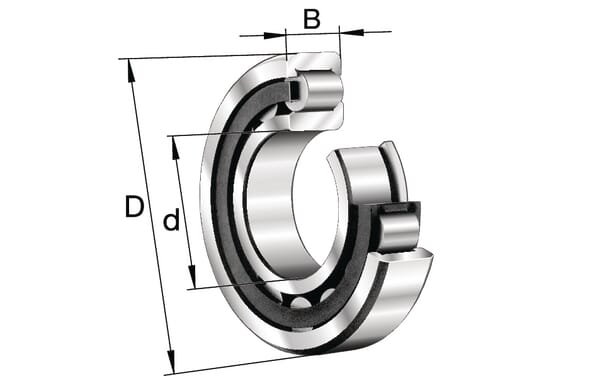

| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 35 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 70 mm |
| DOutside diameter | 150 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 6300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ314-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 4500 r/min |
| Rows number | 1 |
| Sealing | n/a |
| Unit | Each |
Logistics
| EAN | 4012801023672 |
|---|---|
| Unit of measure | EA |
| Weight | 2820 g |
| Dimensions | 160 × 160 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325168
FAG Cylindrical roller bearing NJ310EXLTVP2C3
£149.16 excl.
£178.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285153

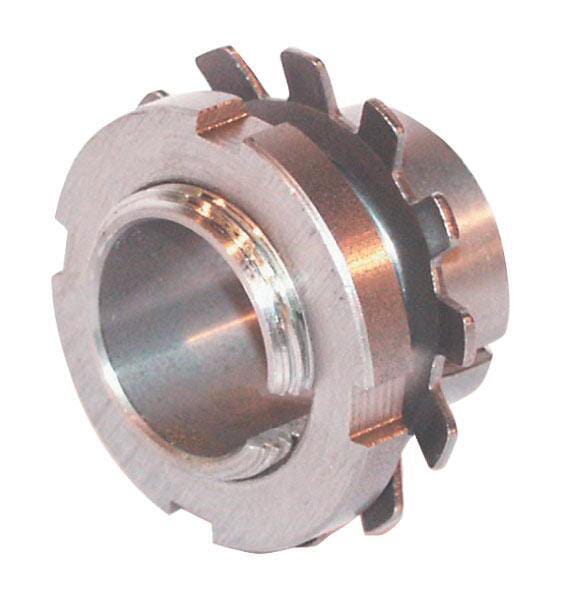

FAG Adaptor sleeve with nut 75x110x50mm H217
