£435.32
excl. VAT
£522.38 incl. VAT
£522.38
incl. VAT
£435.32 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

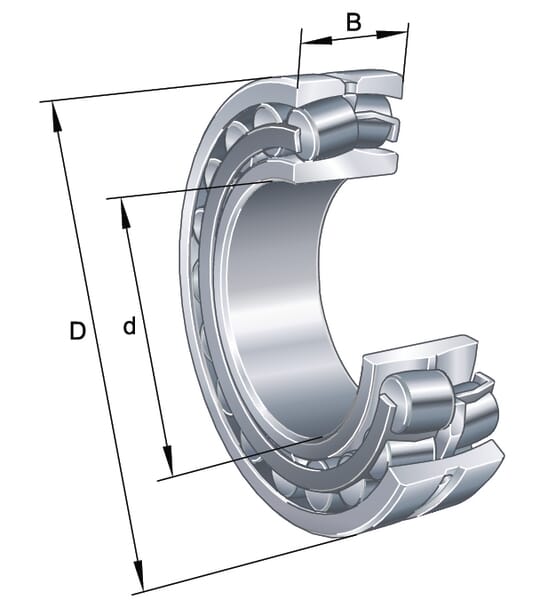

Product details
| Basic radial load dynamic | 450000 N |
|---|---|
| Basic radial load static | 570000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 52 mm |
| dInside diameter | 100 mm |
| DOutside diameter | 165 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 4000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 23120-E1-TVPB |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Radial internal clearance code | CN |
| Ref rotation speed | 4300 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 4.187 kg |
Logistics
| EAN | 4026677809629 |
|---|---|
| Unit of measure | EA |
| Weight | 4305 g |
| Dimensions | 193 × 187 × 68 mm |
| Dangerous goods | No |
You might also like
BPA000072335
FAG Self-aligning ball bearing 60x110x28mm INA/FAG 2212TVH
£67.79 excl.
£81.35 incl.
In stock
Expected to ship on Friday 18 September

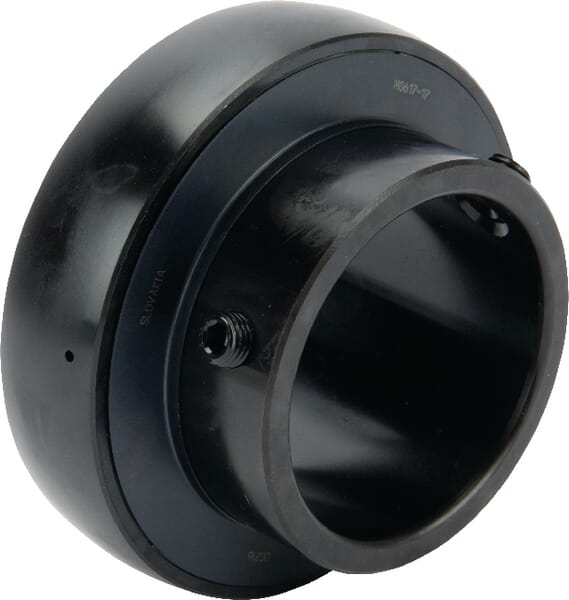

BPA000380550
FAG Bearing insert 2" / 50.8x100x25mm INA/FAG UC21132INA
£37.67 excl.
£45.20 incl.
In stock
Expected to ship on Friday 18 September

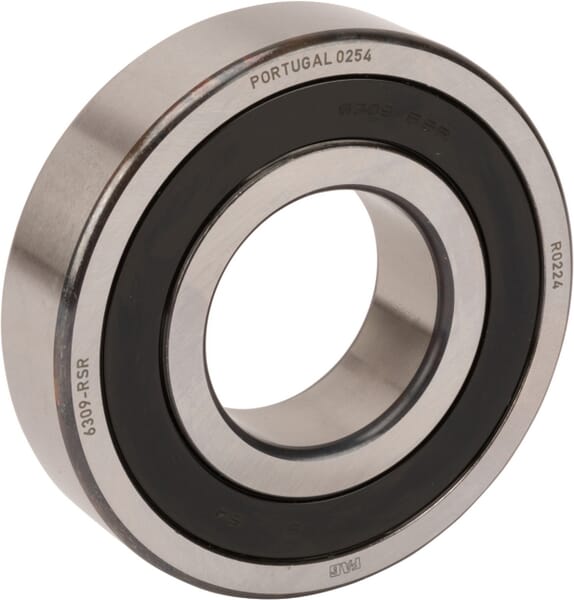

BPA000153712
