£591.17
excl. VAT
£709.40 incl. VAT
£709.40
incl. VAT
£591.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 113000 N |
|---|---|
| Basic radial load static | 123000 N |

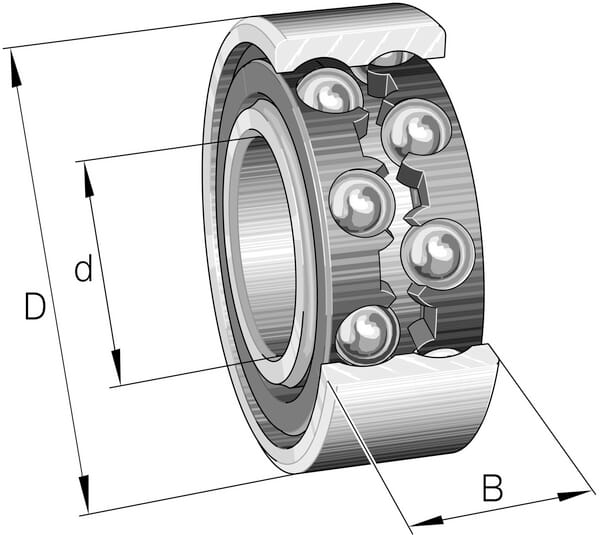

| Bearing model type | Deep groove ball bearings |
| BWidth | 40 mm |
| dInside diameter | 90 mm |
| DOutside diameter | 160 mm |
| Inside diameter of outer ring | 140.2 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 3300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 4218-B-TVH |
| Outside diameter of inner ring | 117.6 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 4100 r/min |
| Sealing | n/a |
| Unit | Each |
Logistics
| EAN | 4012801512107 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
