£34.88
excl. VAT
£41.86 incl. VAT
£41.86
incl. VAT
£34.88 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 10900 N |
|---|---|
| Basic radial load static | 5320 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| Content in sale unit | 1 pcs |
| Inner ring shape | Cylindrical |
| Inside diameter | 20 mm |
| Inside diameter of outer ring | 41 mm |
| Long description | Stainless steel bearings are manufactured from hardened, martensitic stainless steel with a high carbon content. This material combines excellent corrosion resistance with high strength. It also exhibits strong magnetic properties. |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Max rotation speed | 18300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | S6204-2Z-HLC |
| Outside diameter | 47 mm |
| Outside diameter of inner ring | 28.8 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 15500 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | ZZ |
| Unit | Each |
| Weight | 0.106 kg |
| Width | 14 mm |
Logistics
| EAN | 4012802608021 |
|---|---|
| Unit of measure | EA |
| Weight | 110 g |
| Dimensions | 50 × 50 × 17 mm |
| Dangerous goods | No |
You might also like
BPA000155311
FAG Deep groove ball bearing 20x47x14mm INA/FAG 6204H2RS
£24.33 excl.
£29.20 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000353275
FAG Deep groove ball bearing 45x75x16mm INA/FAG S60092RSRHLC
£147.16 excl.
£176.59 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067542
FAG Spherical roller bearing 25x62x17mm INA/FAG 21305E1TVPB
£123.84 excl.
£148.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072622

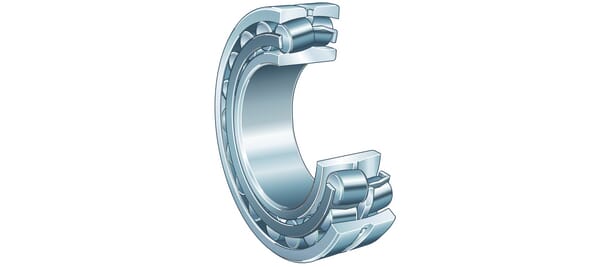

FAG Spherical roller bearing 95x170x43mm 22219E1XLC3
