£6.56
excl. VAT
£7.87 incl. VAT
£7.87
incl. VAT
£6.56 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Female |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Housing colour | Grey |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 12 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AMH1060200122
TE Connectivity DEUTSCH Contact pin female, 0.2-0.5mm² Series DTM (10x), Deutsch AMH1060200122
£0.23 excl.
£0.28 incl.
DS04112402005
TE Connectivity DEUTSCH Tools Extract 20 DS04112402005
£5.90 excl.
£7.08 incl.
DS04132042005
TE Connectivity DEUTSCH Sealing plug DS20 DS04132042005
£0.14 excl.
£0.17 incl.
DS046020220141
TE Connectivity DEUTSCH Contact pin male DS20 male DS046020220141
£0.59 excl.
£0.71 incl.
DSDTM0612SA
TE Connectivity DEUTSCH Plug housing male, 12 poles Series DTM (1x), Deutsch DSDTM0612SA
£4.27 excl.
£5.12 incl.
DSDTM0612SAE007
TE Connectivity DEUTSCH Plug housing male, grey, 12 poles Series DTM (1x), Deutsch DSDTM0612SAE007
£9.44 excl.
£11.33 incl.
DSDTM12PBT
TE Connectivity DEUTSCH Cable guide grey, Series DTM (1x), Deutsch DSDTM12PBT
£4.40 excl.
£5.28 incl.
DSHDT4800
TE Connectivity DEUTSCH Crimping Pliers Contact DSHDT4800
£700.18 excl.
£840.22 incl.
DSWM12P
TE Connectivity DEUTSCH Locking device female, 12 poles Series DTM, Deutsch DSWM12P
£0.67 excl.
£0.80 incl.
Logistics
| EAN | 8719607072397 |
|---|---|
| Unit of measure | EA |
| Weight | 16 g |
| Dimensions | 43 × 40 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000250269
TE Connectivity DEUTSCH Cable guide DRC 50P DSDRC2650BT
£27.31 excl.
£32.77 incl.
In stock
Expected to ship on Friday 18 September
BPA000250408
TE Connectivity DEUTSCH Plug housing 31 P. Female HDP20 DSHDP262431SE
£45.42 excl.
£54.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000250267
TE Connectivity DEUTSCH Plug housing 40 P. Female DRC-A DSDRC2640SA
£36.69 excl.
£44.03 incl.
Backorder available
Usually ships within 3–8 weeks

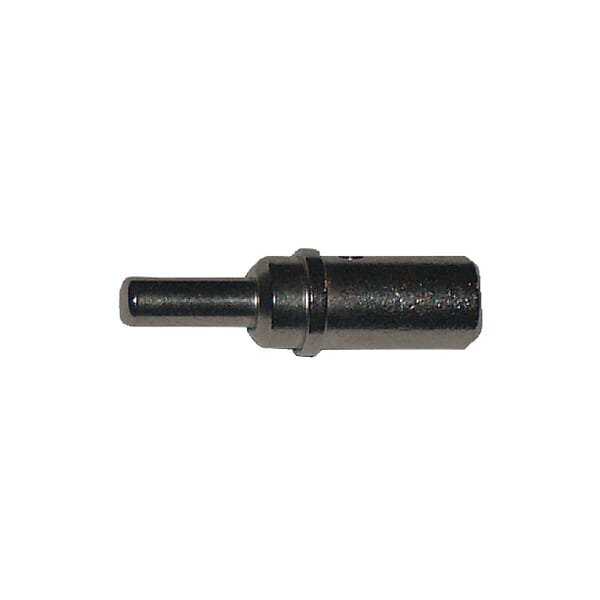

BPA000249768
