£7.78
excl. VAT
£9.34 incl. VAT
£9.34
incl. VAT
£7.78 excl. VAT
In stock
Expected to ship on Friday 18 September

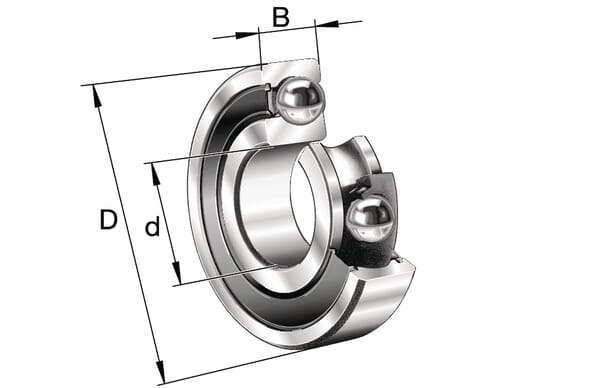

Product details
| Basic radial load dynamic | 16000 N |
|---|---|
| Basic radial load static | 7800 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| BWidth | 15 mm |
| Content in sale unit | 1 pcs |
| dInside diameter | 20 mm |
| DOutside diameter | 52 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 42.17 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 14000 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 6304-2RSR-C3 |
| Outside diameter of inner ring | 27.67 mm |
| Radial internal clearance code | C3 |
| Ref rotation speed | 9500 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | 2RS |
| Unit | Each |
Logistics
| EAN | 4054372589058 |
|---|---|
| Unit of measure | EA |
| Weight | 151 g |
| Dimensions | 56 × 55 × 17 mm |
| Dangerous goods | No |
You might also like
BPA000153553
FAG Deep groove ball bearing 20x52x15mm INA/FAG 6304RSRC3
£9.19 excl.
£11.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000326257
FAG Cylindrical roller bearing 15x35x11mm INA/FAG NU202EXLTVP2
£29.11 excl.
£34.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326274
FAG Cylindrical roller bearing 40x80x18mm INA/FAG NU208EXLTVP2C3
£53.61 excl.
£64.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258039

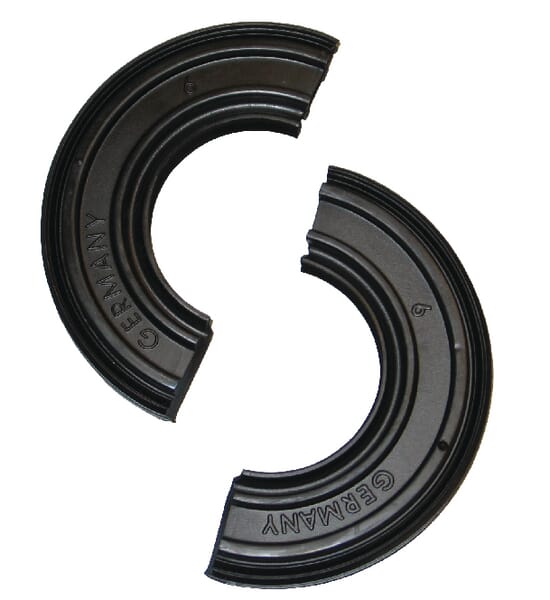

FAG Double lip seal EDH612
£21.80 excl.
£26.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150308
FAG Deep groove ball bearing 40x68x15mm INA/FAG 6008ZZC3
£11.52 excl.
£13.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000088757

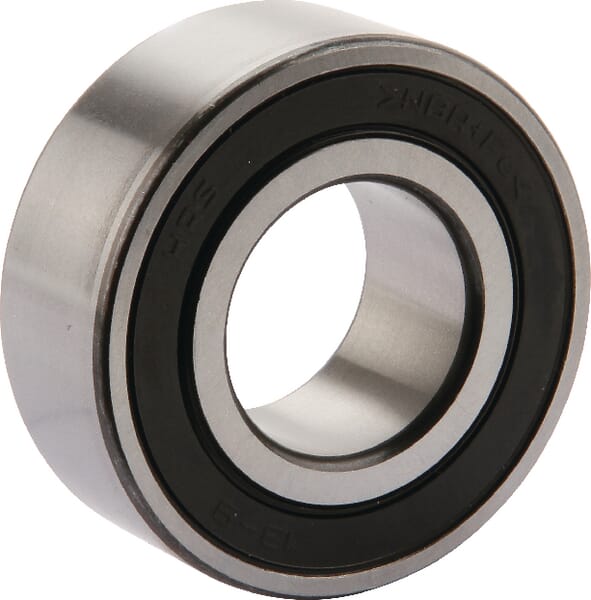

FAG Angular contact ball bearing 17x40x17.5mm INA/FAG 3203B2RSRTVHC3
£34.49 excl.
£41.39 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000199455
Kramp Hexagon head bolt DIN931 M12x140 steel zinc-plated 10.9 93112140109
£2.02 excl.
£2.42 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000010072

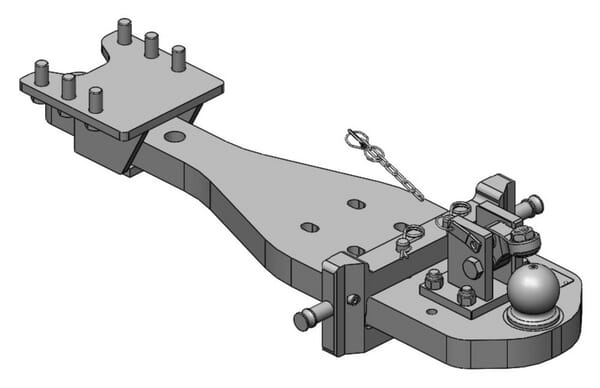

Scharmüller Heavy Duty Drawbar K80® suitable for John Deere 6175R, 6195R, 6215R SET 009603870SETA17
