£27.01
excl. VAT
£32.41 incl. VAT
£32.41
incl. VAT
£27.01 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

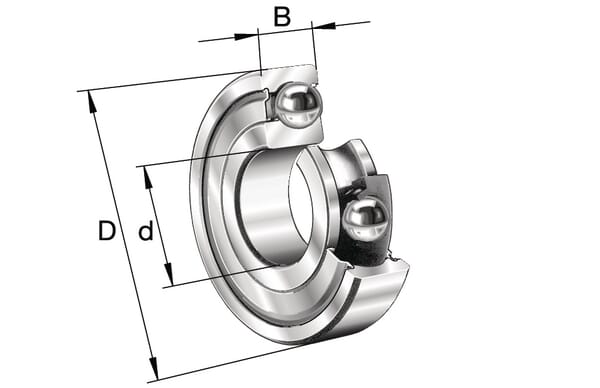

| Basic radial load dynamic | 62000 N |
|---|---|
| Basic radial load static | 31500 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| BWidth | 25 mm |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 83.6 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 8900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 6309-C-2Z-C3 |
| Outside diameter of inner ring | 60.33 mm |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6700 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | ZZ |
| Unit | Each |
Logistics
| EAN | 4054369499865 |
|---|---|
| Unit of measure | EA |
| Weight | 863 g |
| Dimensions | 105 × 105 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000150786
FAG Deep groove ball bearing 6014RSR
£56.95 excl.
£68.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000070663
FAG Spherical roller bearing 140x210x53mm INA/FAG 23028E1TVPB
£782.96 excl.
£939.55 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151953
FAG Deep groove ball bearing 110x170x28mm INA/FAG 6022
£130.65 excl.
£156.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000153335
FAG Deep groove ball bearing 12x28x12mm INA/FAG 630012RS
£13.37 excl.
£16.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000153370

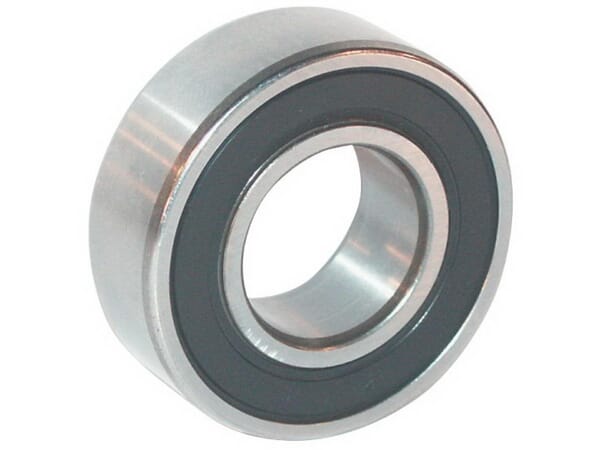

FAG Deep groove ball bearing 35x62x20mm INA/FAG 630072RS
