£215.87
excl. VAT
£259.04 incl. VAT
£259.04
incl. VAT
£215.87 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 75000 N |
|---|---|
| Basic radial load static | 60000 N |
| Bearing model type | Deep groove ball bearings |

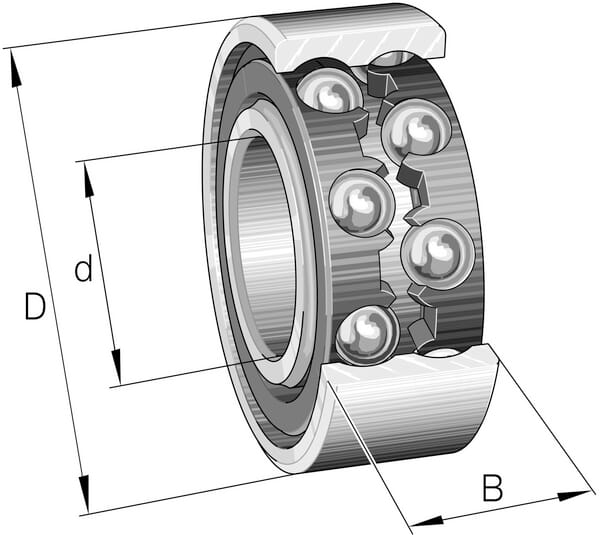

| BWidth | 36 mm |
| Content in sale unit | 1 pcs |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 86.84 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 5400 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 4309-B-TVH |
| Outside diameter of inner ring | 66.7 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 6000 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.244 kg |
Logistics
| EAN | 4012801197199 |
|---|---|
| Unit of measure | EA |
| Weight | 1380 g |
| Dimensions | 105 × 105 × 45 mm |
| Dangerous goods | No |
