£60.61
excl. VAT
£72.73 incl. VAT
£72.73
incl. VAT
£60.61 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 63000 N |
| Basic radial load static | 53000 N |
| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | C3 radial bearing clearance |
| dInside diameter | 40 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ208-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7500 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.378 kg |
Logistics
| EAN | 4012801020664 |
|---|---|
| Unit of measure | EA |
| Weight | 388 g |
| Dimensions | 83 × 83 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000167039
FAG Angular contact ball bearing 45x85x19mm INA/FAG 7209BTVP
£51.91 excl.
£62.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000086055
FAG Angular contact ball bearing 70x125x39.7mm INA/FAG 3214BTVH
£216.29 excl.
£259.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380542

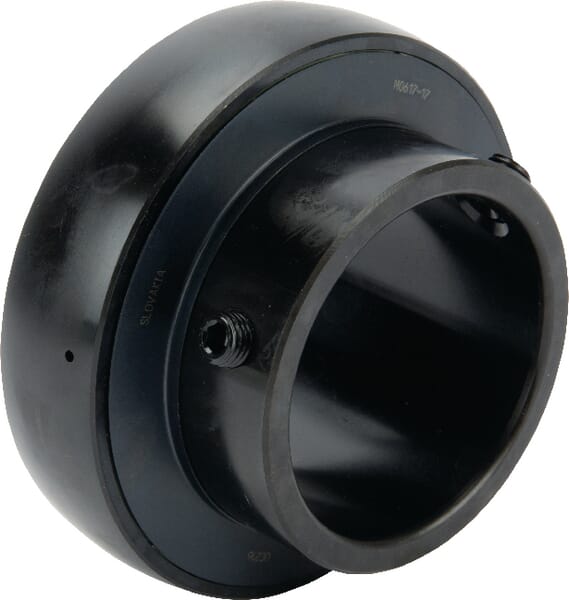

FAG Bearing insert 1-1/2" / 38.1x80x21mm INA/FAG UC20824INA
