£4.66
excl. VAT
£5.59 incl. VAT
£5.59
incl. VAT
£4.66 excl. VAT
In stock
Expected to ship on Friday 18 September

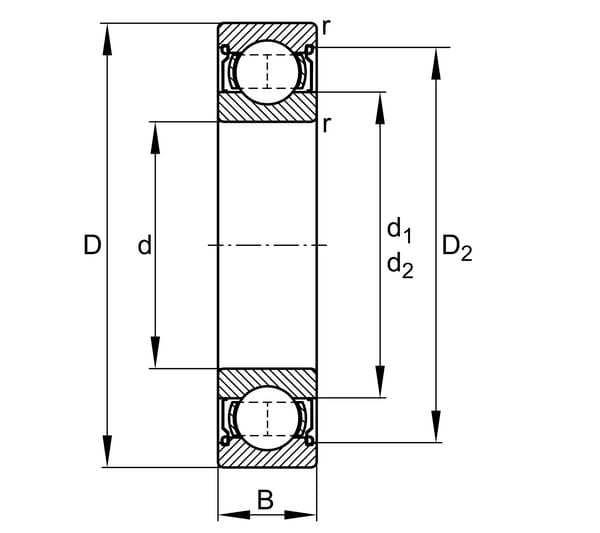

Product details
| Basic radial load dynamic | 12700 N |
|---|---|
| Basic radial load static | 6550 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| Content in sale unit | 1 pcs |
| Inner ring shape | Cylindrical |
| Inside diameter | 6 mm |
| Inside diameter of outer ring | 16.7 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 53000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 626-Z |
| Outside diameter | 19 mm |
| Outside diameter of inner ring | 9 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 32000 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Z |
| Unit | Each |
| Width | 6 mm |
Logistics
| EAN | 40543620033804064327025173 |
|---|---|
| Unit of measure | EA |
| Weight | 8 g |
| Dimensions | 35 × 34 × 9 mm |
| Dangerous goods | No |
