£27.97
excl. VAT
£33.56 incl. VAT
£33.56
incl. VAT
£27.97 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Basic radial load dynamic | 32500 N |
|---|---|
| Basic radial load static | 20400 N |
| Bearing balls distance to locking side end | 22 mm |
| Bearing inner ring width | 49.2 mm |
| Bearing inside diameter | 45 mm |
| Flange thickness | 18 mm |
| Grease nipple thread diameter | M6 |
| Housing height | 38 mm |
| Housing type | Square flange |
| Housing width | 137 mm |
| Includes | Bearing block, Bearing, Grease nipple |
| Long description | These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting holes diameter | 16 mm |
| Mounting holes distance | 105 mm |
| Number of mounting holes | 4 |
| Original number equivalent | UCF209-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Properties | Inner bearing has extended inner ring with 2 adjusting screws on both sides, Can be subsequently lubricated |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated |
| Total height | 52.2 mm |
| Total length | 137 mm |
| Unit | Each |
Logistics
| EAN | 4047643247603 |
|---|---|
| Unit of measure | EA |
| Weight | 2375 g |
| Dimensions | 155 × 155 × 63 mm |
| Dangerous goods | No |
You might also like
BPA000112319

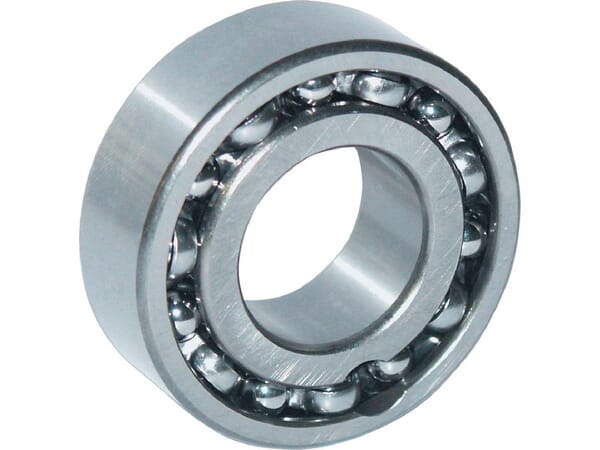

FAG Deep groove ball bearing 35x72x23mm INA/FAG 4207BBTVH
£58.73 excl.
£70.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000155590

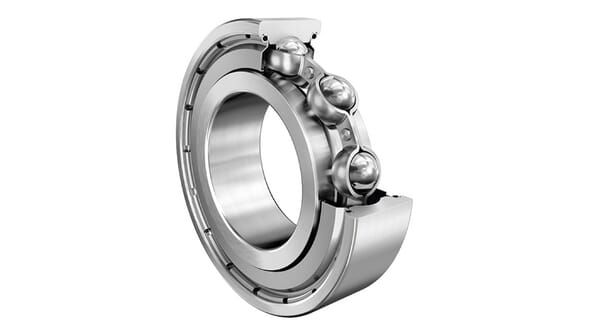

FAG Deep groove ball bearing C3 75x130x25 INA/FAG 62152ZC3
£82.36 excl.
£98.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380542
FAG Bearing insert 1-1/2" / 38.1x80x21mm INA/FAG UC20824INA
£24.06 excl.
£28.87 incl.
In stock
Expected to ship on Monday 21 September
BPA000380551
FAG Bearing insert 55x100x25.6mm INA/FAG UC211INA
£35.39 excl.
£42.47 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000072872
FAG Spherical roller bearing 80x170x58mm 22316E1XLKC3
£442.52 excl.
£531.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151094

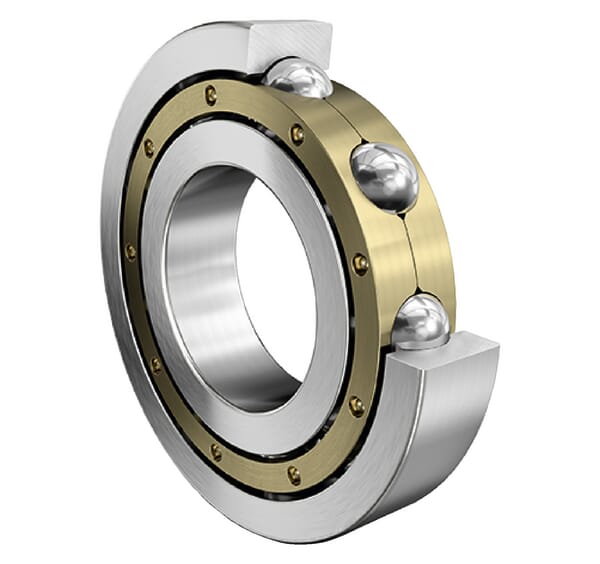

FAG Deep groove ball bearing 6320M
