£20.41
excl. VAT
£24.49 incl. VAT
£24.49
incl. VAT
£20.41 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 27500 N |
|---|---|
| Basic radial load static | 15300 N |
| Bearing balls distance to locking side end | 19 mm |
| Bearing balls distance to mounting surface | 17.5 mm |
| Bearing inner ring width | 42.9 mm |
| Bearing inside diameter | 35 mm |
| Flange thickness | 16 mm |
| Grease nipple thread diameter | M6 |
| Housing height | 34 mm |
| Housing type | Oval flange |
| Housing width | 90 mm |
| Includes | Bearing block, Bearing, Grease nipple |
| Long description | These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting holes diameter | 16 mm |
| Mounting holes distance | 130 mm |
| Number of mounting holes | 2 |
| Original number equivalent | UCFL207-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated |
| Total height | 44.4 mm |
| Total length | 161 mm |
| Unit | Each |
Logistics
| EAN | 4047643247658 |
|---|---|
| Unit of measure | EA |
| Weight | 1217 g |
| Dimensions | 159 × 100 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000070916
FAG Spherical roller bearing 100x165x52mm INA/FAG 23120E1TVPB
£435.32 excl.
£522.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072352
FAG Self-aligning ball bearing 70x125x31mm INA/FAG 22142RSTVH
£220.36 excl.
£264.43 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072607
FAG Spherical roller bearing 85x150x36mm INA/FAG 22217E1XLKC3
£225.27 excl.
£270.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150507
FAG Deep groove ball bearing 50x80x16mm INA/FAG 60102RSC3
£15.34 excl.
£18.41 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000072895

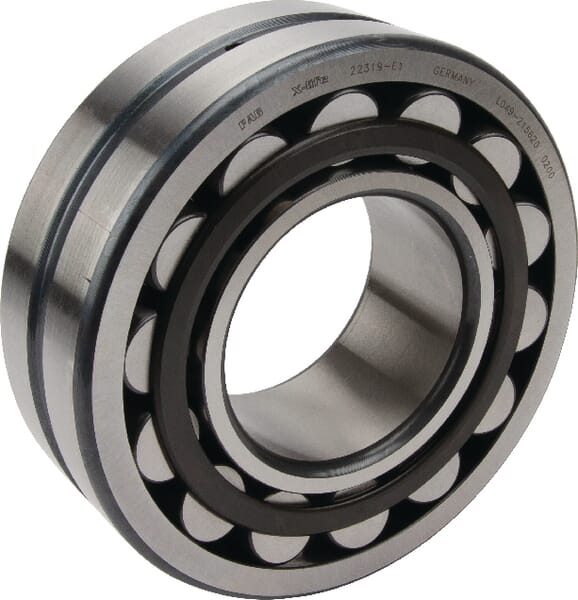

FAG Spherical roller bearing 95x200x67mm INA/FAG 22319E1
