FAG Self-aligning ball bearing 55x100x25mm INA/FAG 2211K2RSTVHC3

About this product

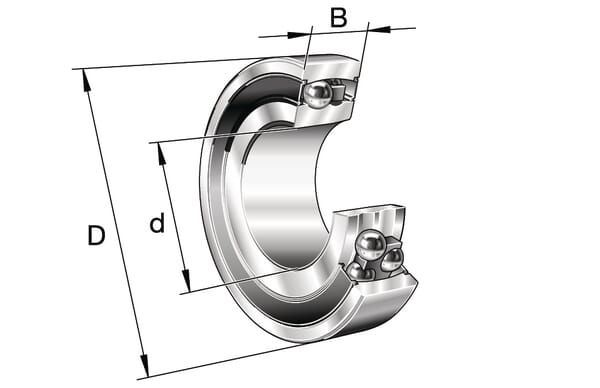

A FAG self-aligning ball bearing (model 2211K2RSTVHC3) with a 55 mm tapered bore, 100 mm outside diameter, and 25 mm width, supplied as a single piece. The bearing is a double-row design with conical inner ring and 2RS sealing, rated for dynamic radial loads up to 27,000 N and static radial loads to 10,000 N. Operating temperature range is −20 °C to 100 °C, with a maximum rotation speed of 3,900 r/min. The bearing is suited to applications with considerable shaft deflection or alignment errors, including conveyor belt systems and steel production plants. The inner ring is tapered and the radial internal clearance code is C3; note that an expansion bush is ordered separately if required. The bearing weighs approximately 799 g and carries the EAN 4012801160544.
