About this product
A FAG self-aligning ball bearing (original number 2211-K-TVH-C3) with a 55 mm tapered bore, 100 mm outside diameter, and 25 mm width, supplied as a single unit. The bearing features two rows of balls with a conical inner ring and open sealing. It has a dynamic radial load rating of 39,000 N and static radial load rating of 12,500 N, with a radial internal clearance code C3. Maximum rotation speed is 7,000 r/min at reference speed of 6,700 r/min. Operating temperature range is −30 °C to +120 °C. The bearing is manufactured from steel by Schaeffler and is designed for applications involving significant shaft deflection or alignment errors, including conveyor belts and steel production plant equipment. The bearing weighs approximately 726 g and measures 104 mm length × 103 mm width × 29 mm height. EAN 40128011605514012801186766.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 39000 N |
| Basic radial load static | 12500 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |

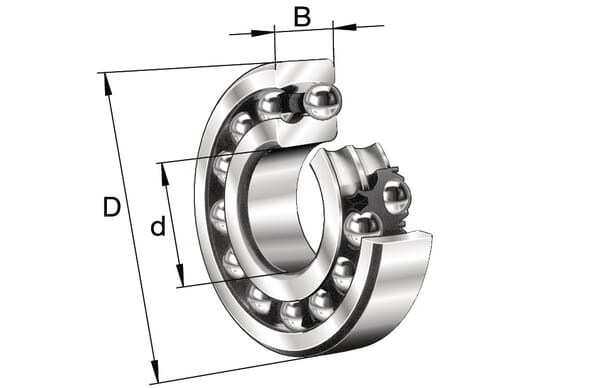

| BWidth | 25 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 55 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Tapered |
| Inside diameter of outer ring | 89.8 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 7000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 2211-K-TVH-C3 |
| Outside diameter of inner ring | 69.64 mm |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6700 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.727 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 40128011605514012801186766 |
|---|---|
| Unit of measure | EA |
| Weight | 726 g |
| Dimensions | 104 × 103 × 29 mm |
| Dangerous goods | No |
