About this product

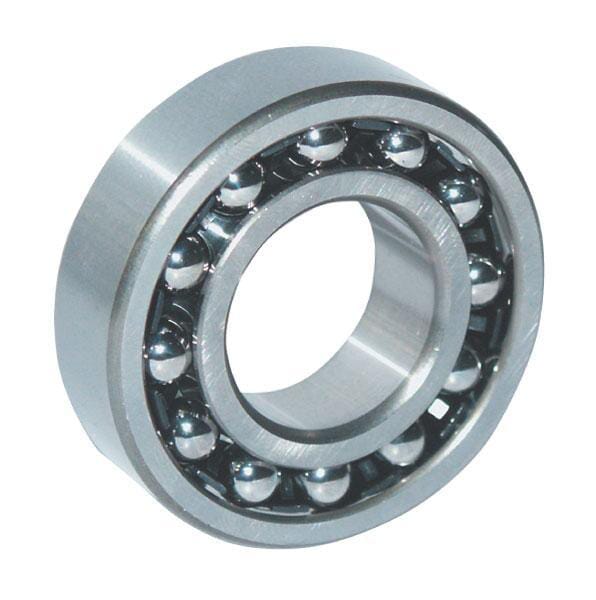

A FAG self-aligning ball bearing (series 2200 K) with a 60 mm tapered bore, 110 mm outside diameter, and 28 mm width, supplied as a single unit. The bearing features a double-row design with a conical inner ring and open sealing. It is rated for a basic dynamic radial load of 48,000 N and basic static radial load of 16,500 N, with a maximum operating speed of 6300 r/min. The radial internal clearance is coded C3. Operating temperature range is −30 °C to 120 °C. The bearing is manufactured from steel and is designed to accommodate considerable shaft deflection or alignment errors, making it suitable for conveyor belt systems and steel production plant applications. The bearing weighs 1.046 kg and carries the EAN 4012801160599 for stock management.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 48000 N |
| Basic radial load static | 16500 N |
| Bearing model type | Self-aligning ball bearings |
| Bore type | Tapered |

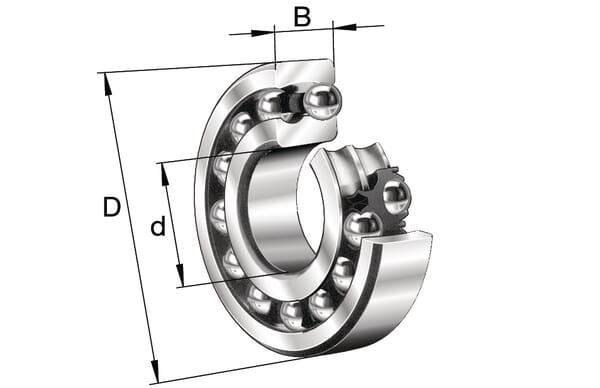

| BWidth | 28 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 60 mm |
| DOutside diameter | 110 mm |
| Inner ring shape | Tapered |
| Inside diameter of outer ring | 98.17 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 6300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 2212-K-TVH-C3 |
| Outside diameter of inner ring | 76.6 mm |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6300 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.046 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4012801160599 |
|---|---|
| Unit of measure | EA |
| Weight | 1042 g |
| Dimensions | 114 × 114 × 33 mm |
| Dangerous goods | No |
