£70.93
excl. VAT
£85.12 incl. VAT
£85.12
incl. VAT
£70.93 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 75000 N |
| Basic radial load static | 69000 N |

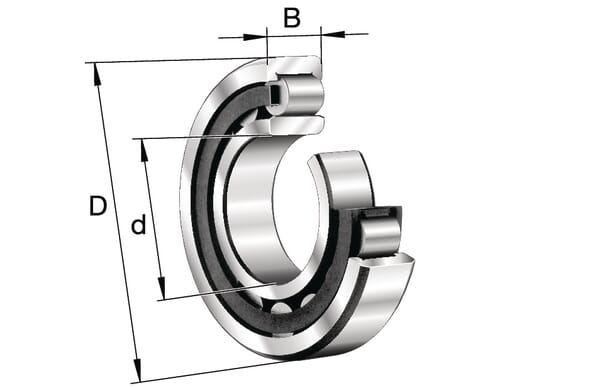

| Bearing model type | Cylindrical roller bearings |
| BWidth | 20 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 50 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 11100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU210-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.497 kg |
Logistics
| EAN | 4012801179287 |
|---|---|
| Unit of measure | EA |
| Weight | 487 g |
| Dimensions | 95 × 94 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000088671
FAG Tapered roller bearing 65x100x23mm INA/FAG 32013X
£30.25 excl.
£36.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000285447
FAG Adaptor sleeve with nut 25x45x31mm H306
£22.12 excl.
£26.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159709
FAG Deep groove ball bearing 6x16x5mm INA/FAG 696AZZ6X16X5ZZ
£9.08 excl.
£10.90 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000326554
FAG Cylindrical roller bearing 80x140x26mm INA/FAG NUP216ETVP2
£225.40 excl.
£270.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153607
FAG Deep groove ball bearing 30x72x19mm INA/FAG 6306RSR
£14.57 excl.
£17.48 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000086507

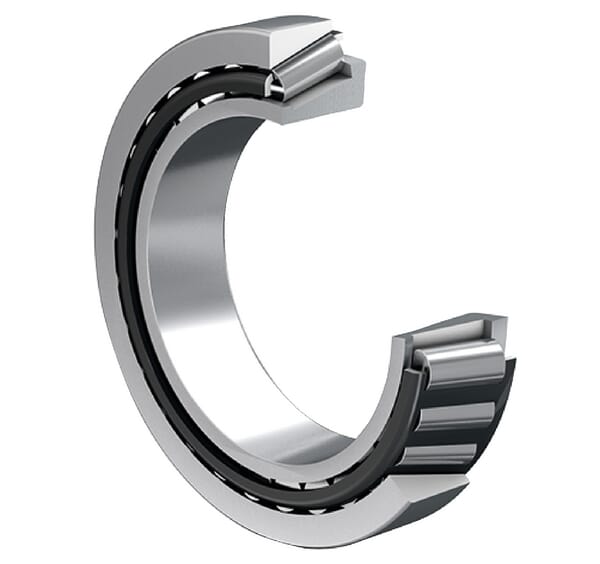

FAG Tapered roller bearing 140x250x71.75mm INA/FAG 32228A
