About this product

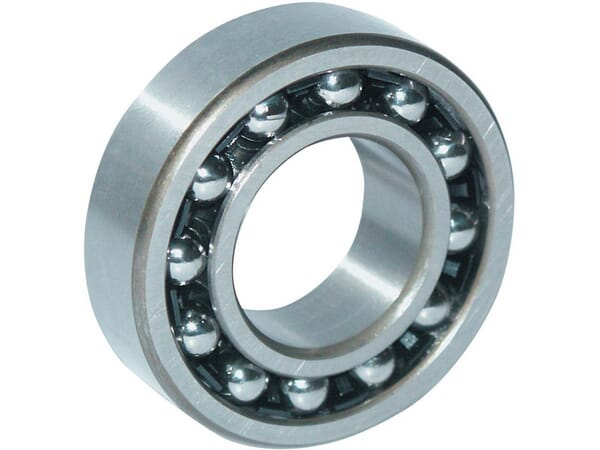

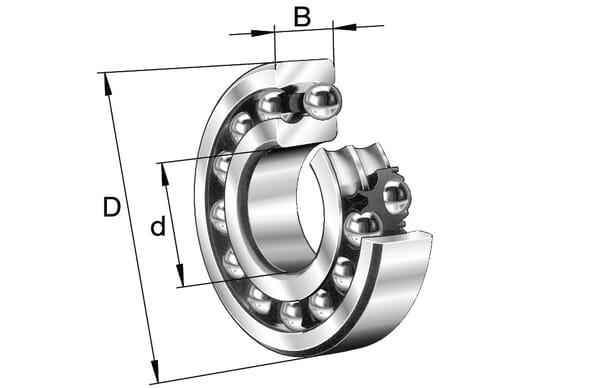

A FAG 1215-K-TVH-C3 self-aligning ball bearing with a tapered inner ring, double-row design, and open sealing. The bearing measures 75 mm inside diameter, 130 mm outside diameter, and 25 mm width. It is rated for a dynamic radial load of 39,000 N and a static radial load of 15,700 N, with a maximum rotation speed of 5,700 r/min. The radial internal clearance code is C3. The bearing is manufactured from steel by Schaeffler and is designed to accommodate shaft deflection or alignment errors, making it suitable for applications in conveyor belts and steel production plants. The expansion bush is not included. Supplied as a single piece; the bearing weighs approximately 1.3 kg and carries the EAN 4012801184076.
Product details
| Application range | Bearing design with considerable shaft deflection or alignment errors, Conveyor belts, Plants for steel production |
|---|---|
| Basic radial load dynamic | 39000 N |
| Basic radial load static | 15700 N |
| Bearing model type | Self-aligning ball bearings |
| BWidth | 25 mm |
| Consists of | Self-adjusting roller bearing, Expansion bush not included |
| dInside diameter | 75 mm |
| DOutside diameter | 130 mm |
| Inner ring shape | Tapered |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 5700 r/min |
| Original number equivalent | 1215-K-TVH-C3 |
| Properties | Self-adjusting roller bearing, Double row, With conical inner ring |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5600 r/min |
| Rows number | 2 |
| Sealing | Open |
| Unit | Each |
| Weight | 1.295 kg |
Logistics
| EAN | 4012801184076 |
|---|---|
| Unit of measure | EA |
| Weight | 1352 g |
| Dimensions | 143 × 149 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000052355

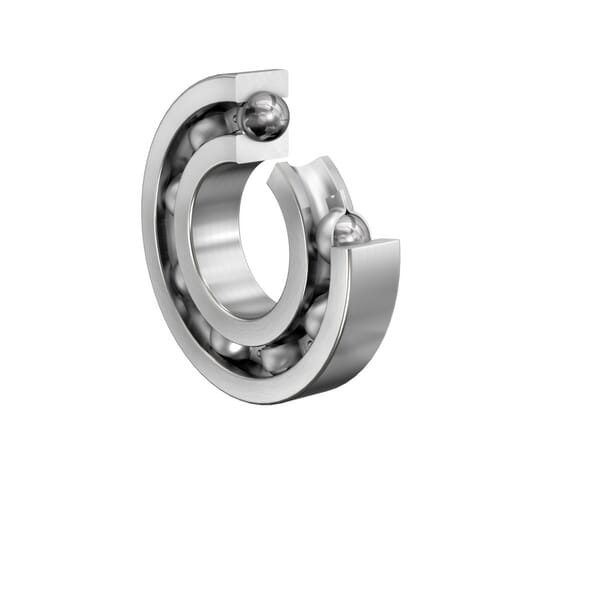

FAG Deep groove ball bearing 75x115x13mm INA/FAG 16015C3FAG
£66.01 excl.
£79.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380815

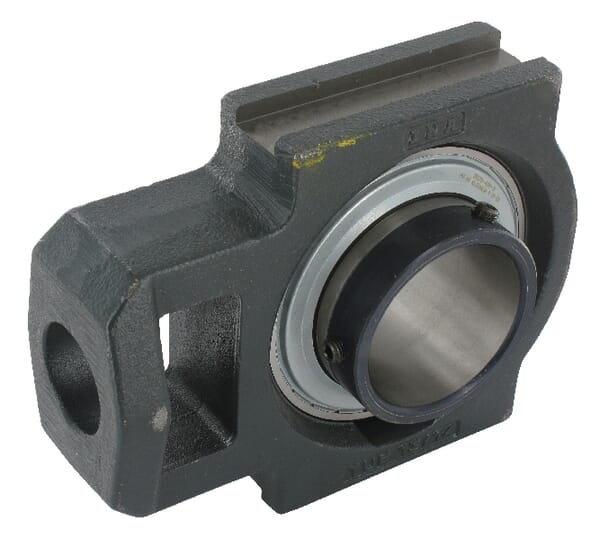

FAG Bearing housing UCT UCT211
£75.78 excl.
£90.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380639
FAG Housing unit UCF UCF212
£53.66 excl.
£64.39 incl.
In stock
Expected to ship on Monday 21 September
BPA000052192

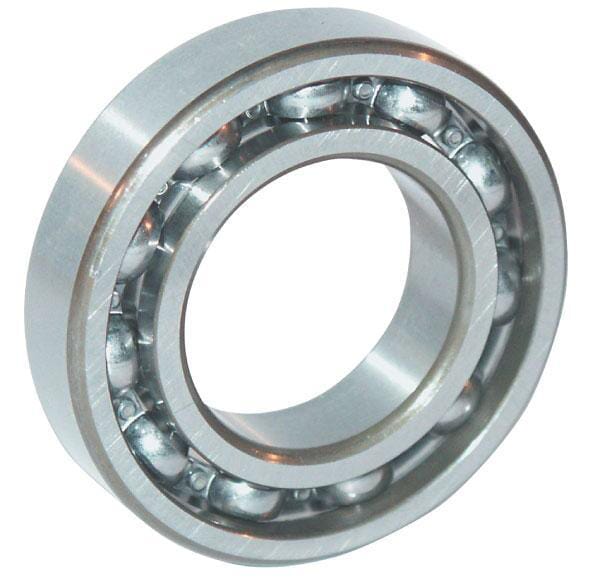

FAG Deep groove ball bearing 20x42x8mm INA/FAG 16004
£9.28 excl.
£11.14 incl.
In stock
Expected to ship on Monday 21 September
BPA000088701

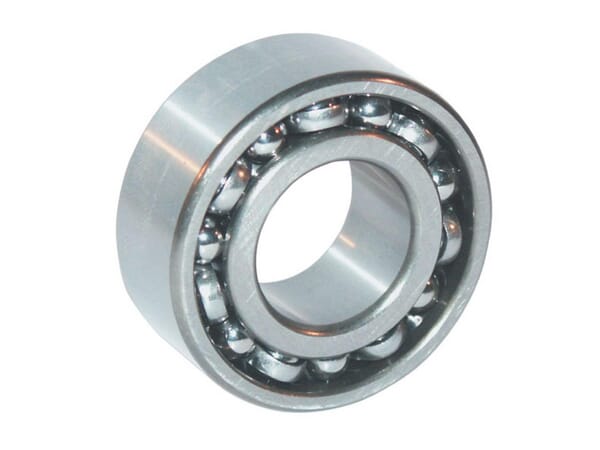

FAG Angular contact ball bearing 12x32x15.9mm INA/FAG 3201BBTVH
