£374.50
excl. VAT
£449.40 incl. VAT
£449.40
incl. VAT
£374.50 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 430000 N |
|---|---|
| Basic radial load static | 475000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |

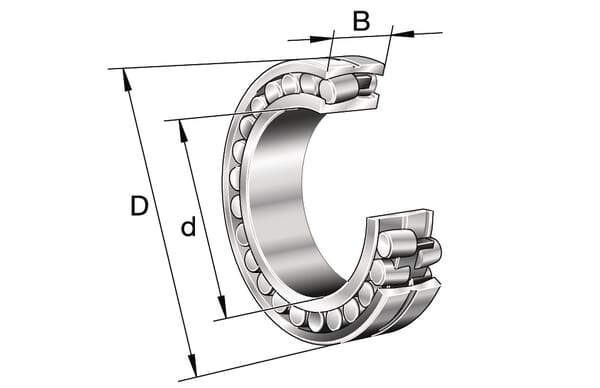

| BWidth | 46 mm |
| dInside diameter | 100 mm |
| DOutside diameter | 180 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 4550 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22220-E1A-XL-M |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Radial internal clearance code | CN |
| Ref rotation speed | 3150 r/min |
| Rows number | 2 |
| Stub diameter | 4.8 mm |
| Unit | Each |
| Weight | 4.931 kg |
Logistics
| EAN | 4026677850485 |
|---|---|
| Unit of measure | EA |
| Weight | 5067 g |
| Dimensions | 192 × 188 × 57 mm |
| Dangerous goods | No |
