£162.34
excl. VAT
£194.81 incl. VAT
£194.81
incl. VAT
£162.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Spindles of machines |
|---|---|
| Basic radial load dynamic | 7600 N |
| Basic radial load static | 3600 N |
| Bearing model type | Spindle bearings |
| Benefits | Resistant to high speeds, Longer service life |

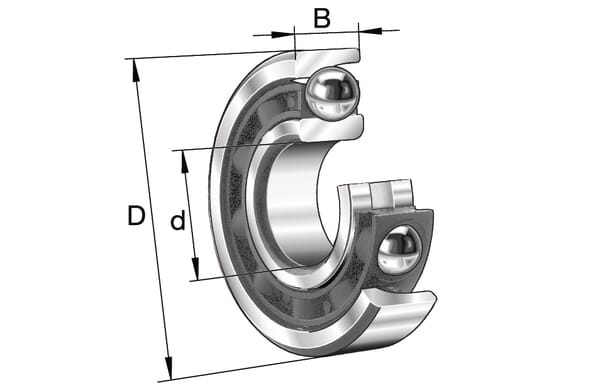

| BWidth | 9 mm |
| Contact angle | 25 ° |
| Details | Particularly suitable for precision guides, High-quality material |
| dInside diameter | 25 mm |
| DOutside diameter | 42 mm |
| Inside diameter of outer ring | 38.5 mm |
| Limiting speed | 533.3 r/s |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -30 °C |
| Original number equivalent | B71905-E-T-P4S-UL |
| Properties | Single row angular contact ball bearing, Suitable for high radial and one-sided axial loads, Open design |
| Radial internal clearance code | CN |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.04381 kg |
Logistics
| EAN | 4012801167673 |
|---|---|
| Unit of measure | EA |
| Weight | 49 g |
| Dimensions | 50 × 50 × 18 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000151953
FAG Deep groove ball bearing 110x170x28mm INA/FAG 6022
£130.65 excl.
£156.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000088779
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BTVH
£37.60 excl.
£45.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155653

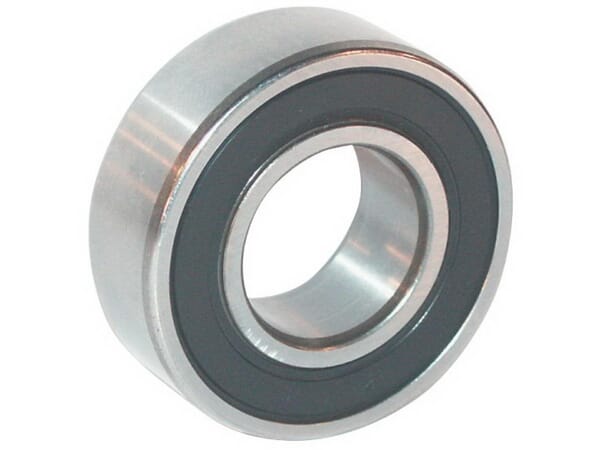

FAG Deep groove ball bearing 12x32x14mm INA/FAG 622012RSR
£11.78 excl.
£14.14 incl.
In stock
Expected to ship on Friday 18 September
BPA000380685
FAG Housing unit UCFL202J7
£19.36 excl.
£23.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000153524
FAG Deep groove ball bearing 17x47x14mm INA/FAG 6303C3
£5.92 excl.
£7.10 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000265398

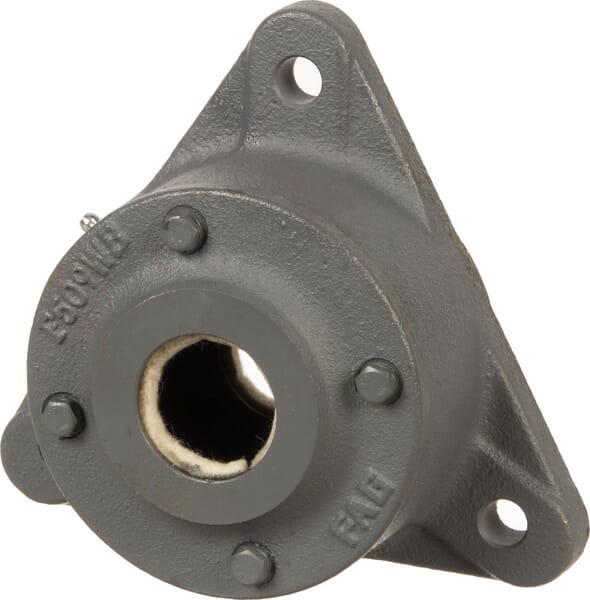

FAG Bearing housing F509WBL
