About this product

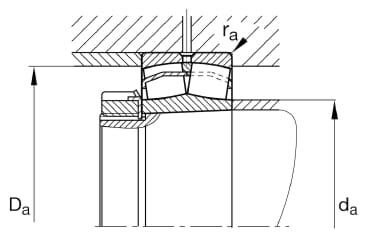

A FAG series 22300 spherical roller bearing with tapered bore and conical inner ring, measuring 50 mm bore diameter by 110 mm outer diameter by 40 mm width, supplied as a single unit. The bearing comprises two rows of spheres and is rated for a basic dynamic radial load of 229,000 N and basic static radial load of 223,000 N. It has an open sealing arrangement and a radial internal clearance code of CN. The bearing is rated for a reference rotation speed of 6,000 r/min with a maximum speed of 6,300 r/min, and operates across a temperature range from −30 °C to +200 °C. The stub diameter is 3.2 mm. This bearing is commonly applied in pumps, fans, cranes, and conveyor systems where heavy radial loads and axial skew handling are required. The product weighs approximately 1.8 kg and carries EAN 4026677806864. The manufacturer is Schaeffler, and the original number equivalent is 22310-E1-K.
