£539.72
excl. VAT
£647.66 incl. VAT
£647.66
incl. VAT
£539.72 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product

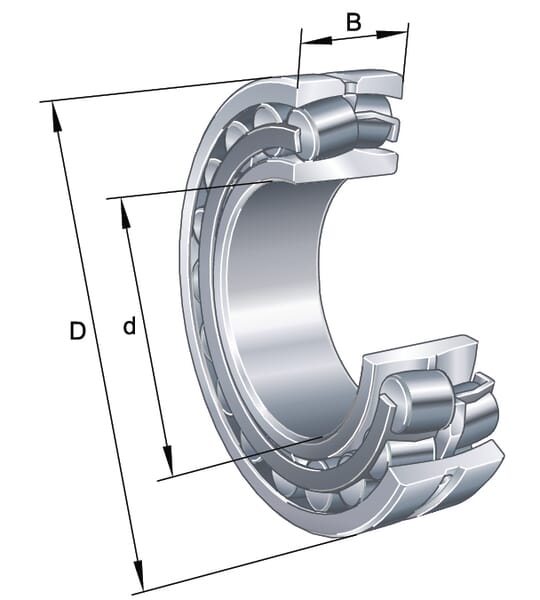

A FAG series 23218 spherical roller bearing with cylindrical inner ring, measuring 90 mm bore diameter, 160 mm outside diameter, and 52.4 mm width. The bearing is rated for a basic dynamic radial load of 440 kN and a static radial load of 520 kN, with a maximum rotation speed of 4250 r/min at reference speed. It features two rows of rolling elements and is supplied with open sealing. Operating temperature range is −30 °C to 120 °C. The bearing is designed for heavy radial loads and axial skews, and is suitable for applications including pumps, fans, cranes, and conveyors. It weighs approximately 4.3 kg and carries EAN 4026677809711.
Product details
| Basic radial load dynamic | 440000 N |
|---|---|
| Basic radial load static | 520000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 52.4 mm |
| dInside diameter | 90 mm |
| DOutside diameter | 160 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 4250 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 23218-E1-TVPB |
| Product details | Heavy radial loads and axial skews, Pumps and fans, Cranes, Conveyors |
| Radial internal clearance code | CN |
| Ref rotation speed | 4300 r/min |
| Rows number | 2 |
| Sealing | Open |
| Stub diameter | 3.2 mm |
| Unit | Each |
Logistics
| EAN | 4026677809711 |
|---|---|
| Unit of measure | EA |
| Weight | 4292 g |
| Dimensions | 166 × 166 × 57 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000071156

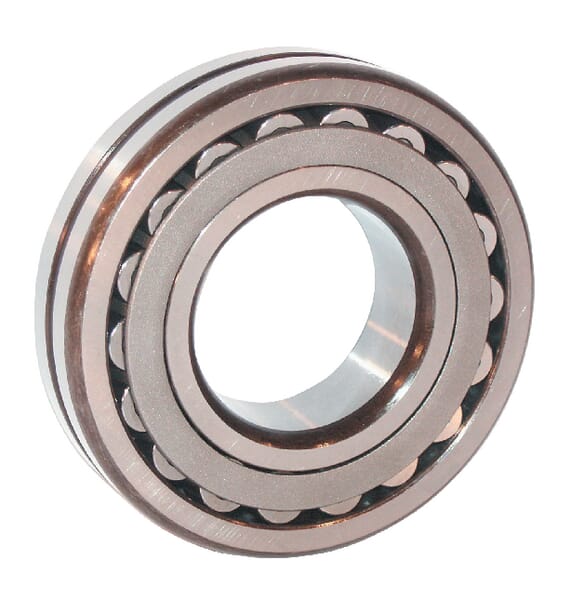

FAG Spherical roller bearing 90x160x52.4mm INA/FAG 23218E1AXLMC3
£517.17 excl.
£620.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000155642

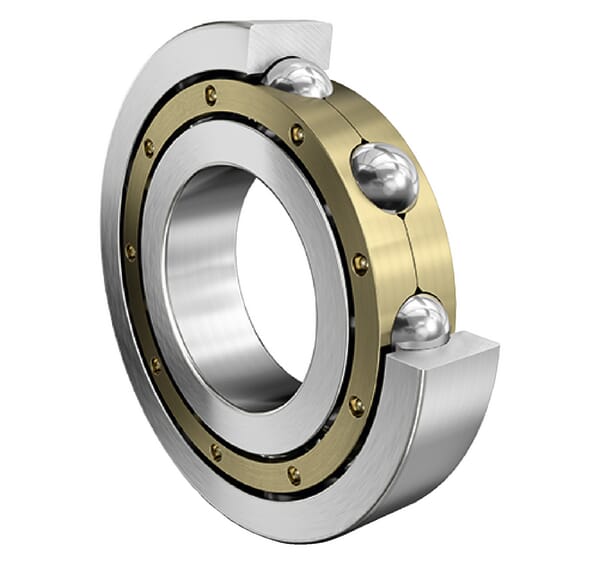

FAG Deep groove ball bearing C3 95x170x32 INA/FAG 6219MC3
£348.85 excl.
£418.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151023

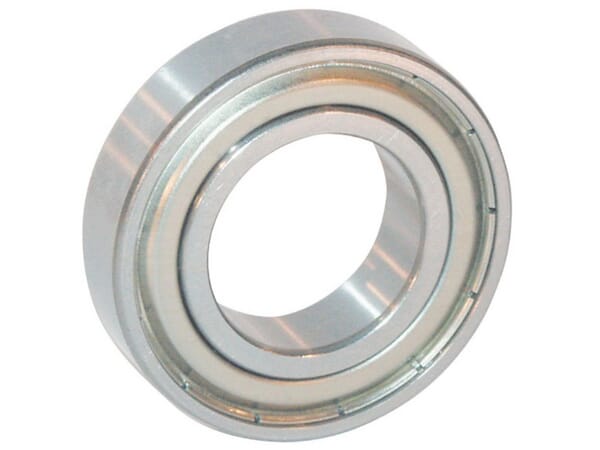

FAG Deep groove ball bearing 75x160x37mm INA/FAG 6315ZZ
£165.44 excl.
£198.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067620
FAG Spherical roller bearing 70x150x35mm INA/FAG 21314K
£298.53 excl.
£358.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153713

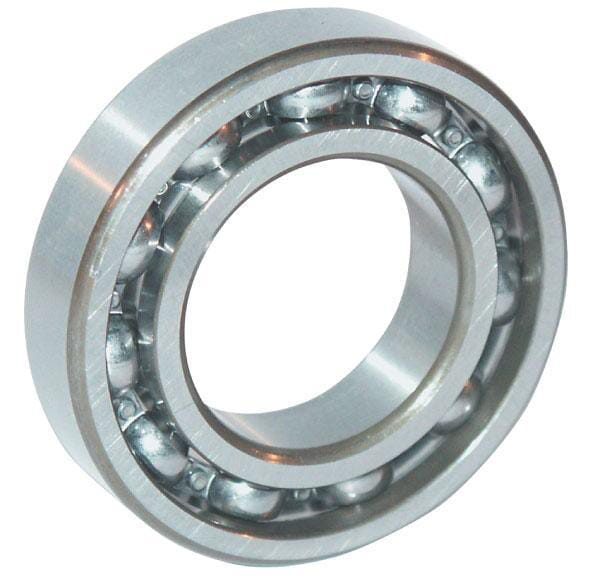

FAG Deep groove ball bearing 45x100x25mm INA/FAG 6309TBP6C3
£87.40 excl.
£104.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000136114

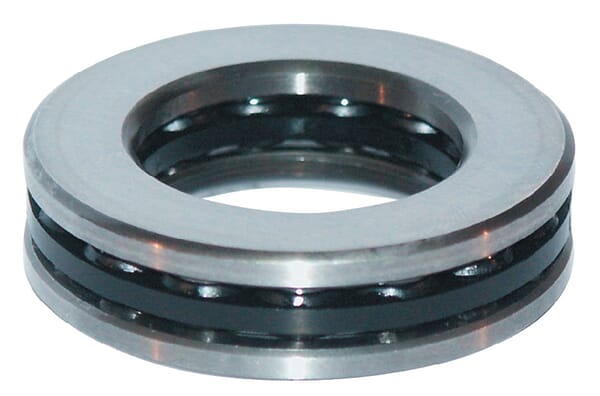

FAG Thrust ball bearing 20x40x14 INA/FAG 51204
