£491.68
excl. VAT
£590.02 incl. VAT
£590.02
incl. VAT
£491.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 445000 N |
|---|---|
| Basic radial load static | 520000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Tapered |
| CWidth | 52.4 mm |
| DOutside diameter | 160 mm |
| Extra info | Expansion bush ordered separately |
| FwInside diameter | 90 mm |
| Includes | Spherical roller bearing with conical inner ring. |
| Inner ring shape | Tapered |
| Manufacturer | Schaeffler |
| Max rotation speed | 4250 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 23218-E1-XL-K-TVPB-C3 |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Radial internal clearance code | C3 |
| Ref rotation speed | 2650 r/min |
| Rows number | 2 |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 4.106 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4026677809759 |
|---|---|
| Unit of measure | EA |
| Weight | 4210 g |
| Dimensions | 170 × 170 × 60 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301021
FAG Locknut KM29
£166.42 excl.
£199.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000168461
FAG Angular contact ball bearing 20x52x15mm INA/FAG 7304BJP
£35.92 excl.
£43.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150775
FAG Deep groove ball bearing 70x110x20mm INA/FAG 60142RS
£36.72 excl.
£44.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150839
FAG Deep groove ball bearing 90x140x24mm INA/FAG 60182RS
£71.03 excl.
£85.24 incl.
In stock
Expected to ship on Tuesday 22 September

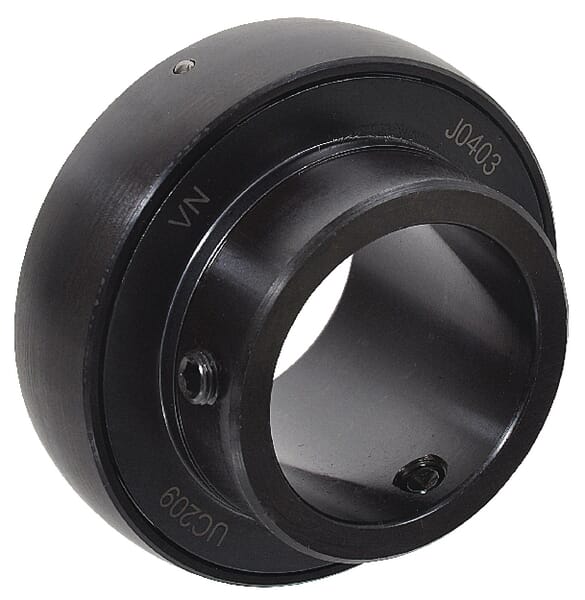

BPA000380546
