£37.60
excl. VAT
£45.12 incl. VAT
£45.12
incl. VAT
£37.60 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 20600 N |
|---|---|
| Basic radial load static | 12900 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 20.6 mm |
| Contact angle | 30 ° |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 40.1 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 16100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 3204-BD-XL-TVH |
| Outside diameter of inner ring | 29.22 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 15000 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.149 kg |
Logistics
| EAN | 40128024747014064327672971 |
|---|---|
| Unit of measure | EA |
| Weight | 153 g |
| Dimensions | 55 × 55 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000088780
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BZZTVH
£43.84 excl.
£52.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088776
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204B2RSRTVH
£29.94 excl.
£35.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000088777
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BDXL2HRSTVHC3
£42.19 excl.
£50.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000088778
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BDXL2ZTVHC3
£42.58 excl.
£51.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000088781
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204ZZ
£43.40 excl.
£52.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152007
FAG Deep groove ball bearing 150x225x35mm INA/FAG 6030
£313.42 excl.
£376.10 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000167216
Timken Tapered roller bearing 50.8x123.83x36.52mm 72200C72487
£268.76 excl.
£322.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152754
Kramp Oil seal 60x80x8mm type:CB DIN 3760 1x 60808CBP001
£5.40 excl.
£6.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000270900
Kramp Circlip external 5/16" 8x1mm DIN471 Steel FGP011575
£0.57 excl.
£0.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000389049

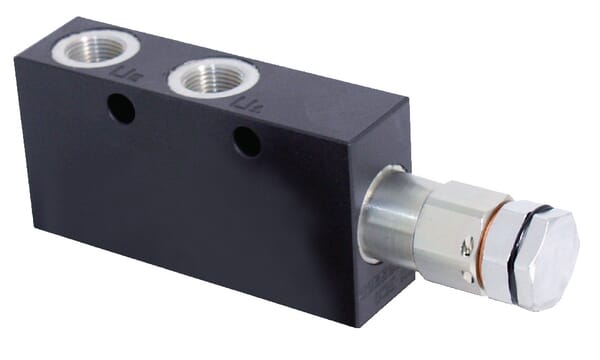

Walvoil Counter balance R1116 3/8 G5P4 VOSL05003ST
