£292.84
excl. VAT
£351.41 incl. VAT
£351.41
incl. VAT
£292.84 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Spindles of machines |
|---|---|
| Basic radial load dynamic | 20400 N |
| Basic radial load static | 16000 N |
| Bearing model type | Spindle bearings |
| Benefits | Resistant to high speeds, Longer service life |

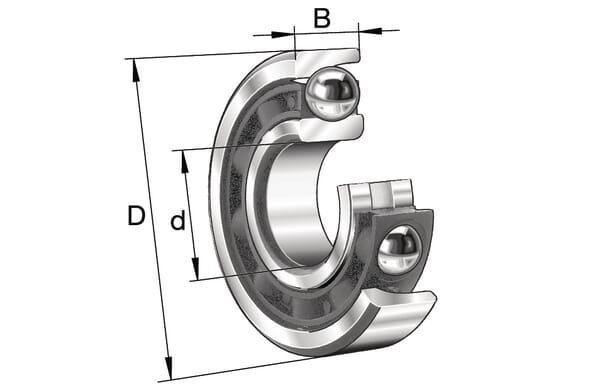

| BWidth | 15 mm |
| Contact angle | 15 ° |
| Details | Particularly suitable for precision guides, High-quality material |
| dInside diameter | 40 mm |
| DOutside diameter | 68 mm |
| Inside diameter of outer ring | 62 mm |
| Limiting speed | 366.7 r/s |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -30 °C |
| Original number equivalent | B7008-C-T-P4S-UL |
| Properties | Single row angular contact ball bearing, Suitable for high radial and one-sided axial loads, Open design |
| Radial internal clearance code | CN |
| Ref rotation speed | 20000 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
Logistics
| EAN | 4012801167185 |
|---|---|
| Unit of measure | EA |
| Weight | 196 g |
| Dimensions | 75 × 75 × 20 mm |
| Dangerous goods | No |
