Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 96000 N |
| Basic radial load static | 79000 N |

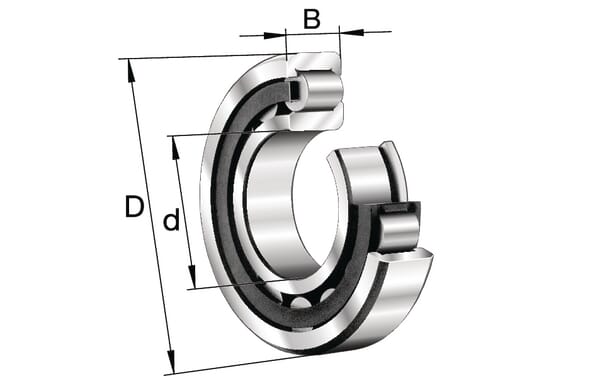

| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | Radial bearing clearance (C3) |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ308-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7100 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.654 kg |
Logistics
| EAN | 4012801177023 |
|---|---|
| Unit of measure | EA |
| Weight | 671 g |
| Dimensions | 95 × 90 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000044878
FAG Self-aligning ball bearing 25x62x17mm INA/FAG 1305TVH
£34.50 excl.
£41.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067579
FAG Spherical roller bearing 50x110x27mm INA/FAG 21310E1K
£185.19 excl.
£222.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000087017

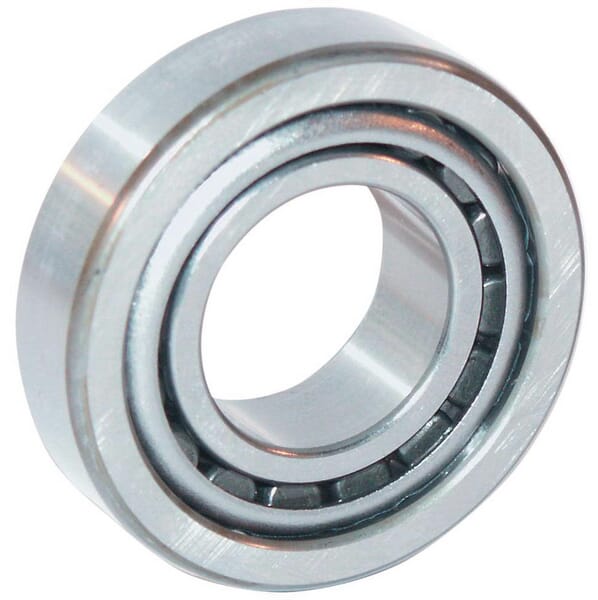

FAG Tapered roller bearing 45x100x36x30mm INA/FAG 32309A
