£267.62
excl. VAT
£321.14 incl. VAT
£321.14
incl. VAT
£267.62 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | In a closed environment with grease and oil, Wheel shafts, Gearbox, Axial piston pumps, Planetary gear, Rear wheel rockers |
|---|---|
| Basic radial load dynamic | 285000 N |
| Basic radial load static | 345000 N |
| Bearing model type | Tapered roller bearings |
| dInside diameter | 80 mm |
| DOutside diameter | 170 mm |
| Inner ring width | 39 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 4250 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 30316-A |
| Outer ring width | 33 mm |
| Properties | Absorb high radial and one-sided loads. |
| Ref rotation speed | 2300 r/min |
| Rows number | 1 |
| Sealing | Open |
| TWidth | 42.5 mm |
| Unit | Each |
| Weight | 4.247 kg |
Logistics
| EAN | 4012801154253 |
|---|---|
| Unit of measure | EA |
| Weight | 4297 g |
| Dimensions | 180 × 180 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000150595

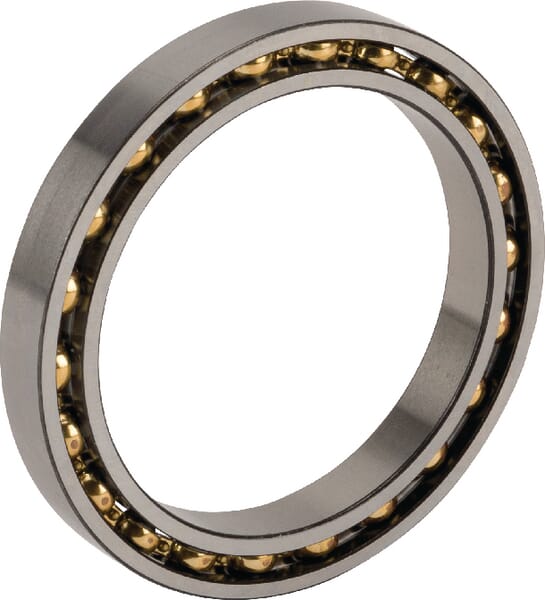

FAG Deep groove ball bearing 60x78x10mm INA/FAG 61812Y
£44.70 excl.
£53.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072864
FAG Spherical roller bearing 75x160x55mm INA/FAG 22315E1K
£368.32 excl.
£441.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072613
FAG Spherical roller bearing 90x160x40mm INA/FAG 22218E1K
£315.21 excl.
£378.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000155295
FAG Deep groove ball bearing 20x47x14mm INA/FAG 62042RS
£5.95 excl.
£7.14 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000038670
FAG Self-aligning ball bearing 1216TVHC3
£168.86 excl.
£202.63 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000088721
FAG Tapered roller bearing 120x180x38mm INA/FAG 32024X
£269.37 excl.
£323.24 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000305030
Kramp Rain coverall waterproof, size XS, green, Kramp Protect KW3182325046
£39.17 excl.
£47.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000032055
Kramp V-belt pulley 4 groove A or SPA diameter 117.50mm for taperlockbush 2012 112A4TL
£41.08 excl.
£49.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000041109

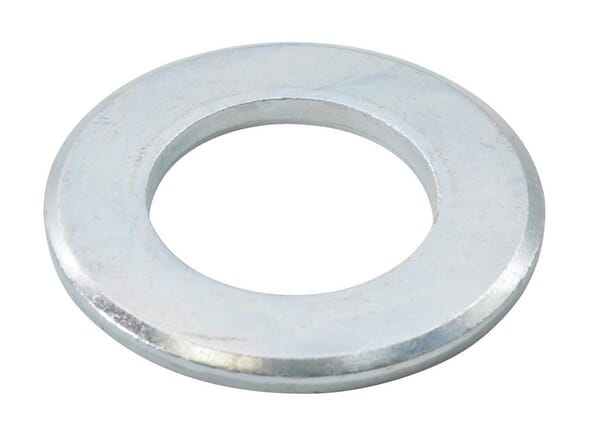

Kramp Washer M20x37x3mm, Steel Zinc-plated DIN 125b 125B20
