£4.78
excl. VAT
£5.74 incl. VAT
£5.74
incl. VAT
£4.78 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 10 pcs |

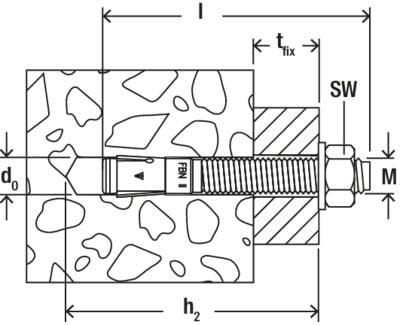

| Drill hole diameter | 16 mm |
| Effective anchorage depth | 65 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| Length | 120 mm |
| Manufacturer Product ID | 045564 |
| Material anchor | Steel |
| Max. clamping thickness | 15 mm |
| Min. drill hole depth | 104 mm |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |

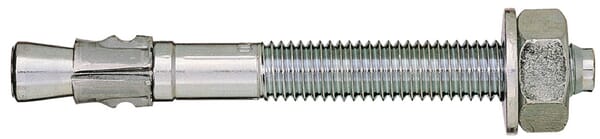

| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | Zinc-plated |
| Thread diameter | M16 |
| Thread length | 64 mm |
| Thread type | Metric |
| Unit | Each |
| With collar | No |
| Wrench/spanner size | 24.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 231 g |
| Dimensions | 145 × 27 × 27 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000181526

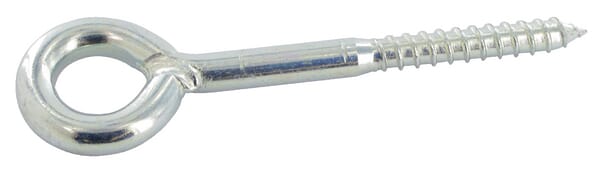

Fischer Scaffold eyebolt GS12x120 25x 80926
