£46.23
excl. VAT
£55.48 incl. VAT
£55.48
incl. VAT
£46.23 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Colour | Grey |
|---|---|
| Connection facility | Internal thread |
| Connection size, connection facility | M8, M10 |
| Content in sale unit | 25 pcs |
| Inlay | Rubber |
| Length | 43.6 mm |
| Lock facility | Screw |
| Manufacturer Product ID | 562349 |
| Material | Steel |
| Max. working diameter | 12 mm |
| Max. working temperature | 100 °C |
| Min. working diameter | 15 mm |
| Min. working temperature | -40 °C |
| Mounting plate width | 20 mm |

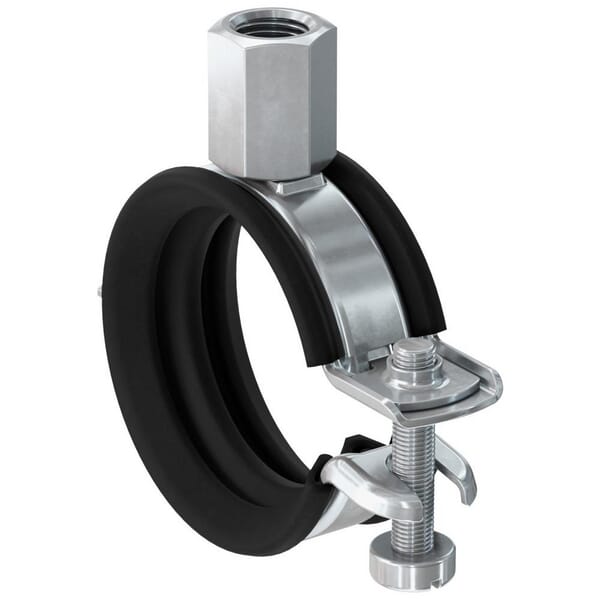

| Product details | The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread, The rapid-locking mechanism and combination thread ensure easy and time-saving assembly, The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open, This allows pipelines with an outer diameter of 12 - 66mm to be securely fixed with a threaded rod or stud screw indoors, With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109, Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130, Zinc plating: electro zinc-plated, Connecting nut: resistance welded, M8 / M10, SW 13, Locking screw: flat head screw with TX drive, Material sound insulation insert: EPDM; chlorine-free; silicone-free, Sound insulation: for DIN 4109, Temperature range: -40 °C to +100 °C, Hardness: 55 ± 5° Shore A, Fire behaviour: DIN 4102: Class B2 |
| Suitable for aluminium tube | Yes |
| Suitable for cast iron pipe | Yes |
| Suitable for copper tube | Yes |
| Suitable for pipe coil | Yes |
| Suitable for plastic tube | Yes |
| Suitable for stainless steel tube | Yes |
| Suitable for steel tube | Yes |
| Suitable for thin-walled pipe | Yes |
| Surface protection | Galvanised, Electrolytic zinc plated |
| Surface treatment | None |
| Unit | Box |
| Width | 48 mm |
Logistics
| EAN | 4048962440881 |
|---|---|
| Unit of measure | BOX |
| Weight | 782 g |
| Dimensions | 240 × 120 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000139790
Fischer Plug Duopower 10x80 S box 10pc 538257
£9.84 excl.
£11.81 incl.
In stock
Expected to ship on Friday 18 September
BPA000139786
Fischer Plug Duopower 12x60 box 25pcs 538253
£9.22 excl.
£11.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000143667
Fischer FAZ II Plus 10/80 EV (10x165) 20pcs 564583
£52.76 excl.
£63.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000143391

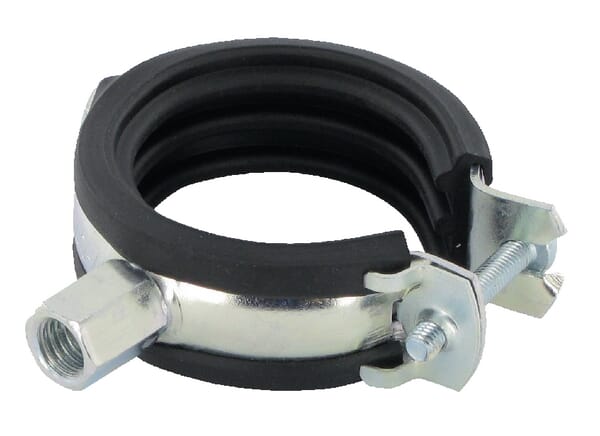

Fischer Pipe clamp FGRS Plus 20-24 8/10 25pcs 562351
