£228.71
excl. VAT
£274.45 incl. VAT
£274.45
incl. VAT
£228.71 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Content in sale unit | 20 pcs |

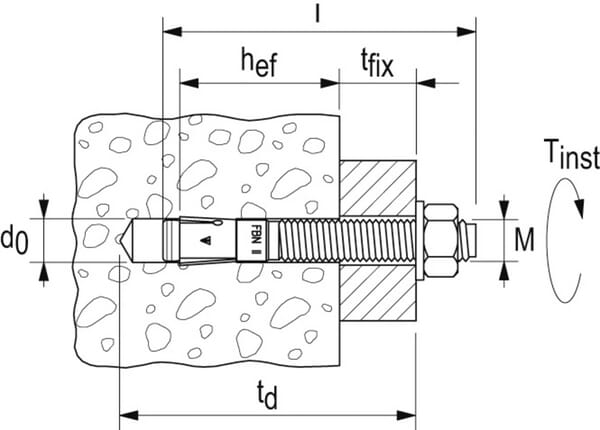

| d0Drill hole diameter | 10 mm |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| hefEffective anchorage depth | 50 mm |
| Length | 175 mm |
| Manufacturer Product ID | 507562 |
| Material anchor | Stainless steel |
| Material quality anchor | A4 (steel) |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The stainless steel version of the bolt anchor is suitable for fastening facade substructures, consoles, and stairs in outdoor areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make for significantly easier installation. |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | None |
| tdMin. drill hole depth | 168 mm |
| tfixMax. clamping thickness | 100 mm |
| Thread diameter | M10 |
| Thread length | 136 mm |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 17.0 mm |
Logistics
| EAN | 4048962087451 |
|---|---|
| Unit of measure | BOX |
| Weight | 1946 g |
| Dimensions | 255 × 90 × 70 mm |
| Dangerous goods | No |
