£76.49
excl. VAT
£91.79 incl. VAT
£91.79
incl. VAT
£76.49 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Content in sale unit | 10 pcs |
|---|---|

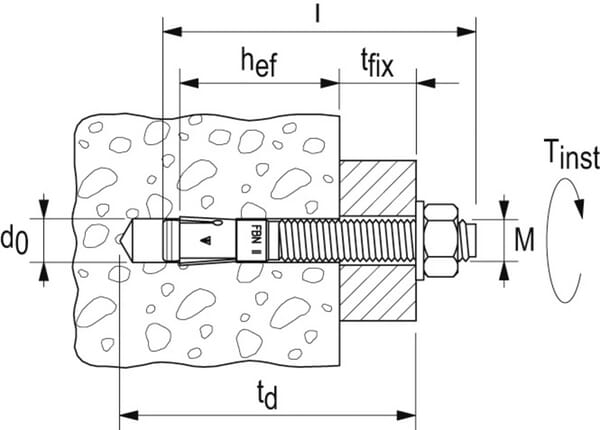

| d0Drill hole diameter | 16 mm |
| hefEffective anchorage depth | 100 mm |
| Length | 220 mm |
| Material anchor | Steel |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 204 mm |
| tfixMax. clamping thickness | 100 mm |
| Thread diameter | M16 |
| Unit | Box |
| Wrench/spanner size | 24.0 mm |
Logistics
| EAN | 4006209455678 |
|---|---|
| Unit of measure | BOX |
| Weight | 3301 g |
| Dimensions | 285 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146363
Fischer Spacer screw ASL 6x150 zinc plated 100x 59064
£135.55 excl.
£162.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000139881

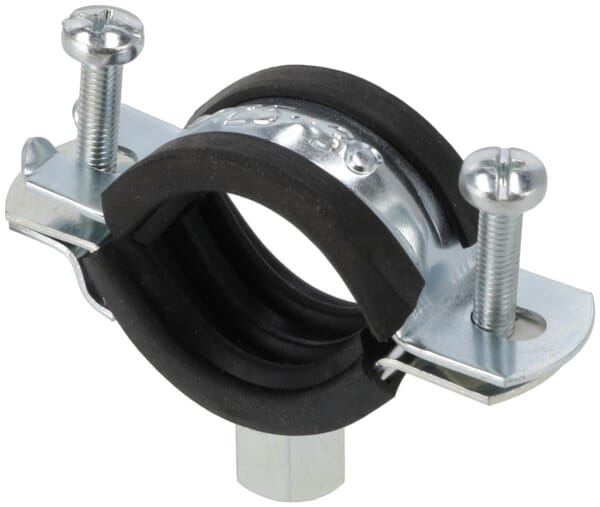

Fischer Pipe clamp FRS-L 25-30 8/10 25pcs 539447
£44.76 excl.
£53.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000273504

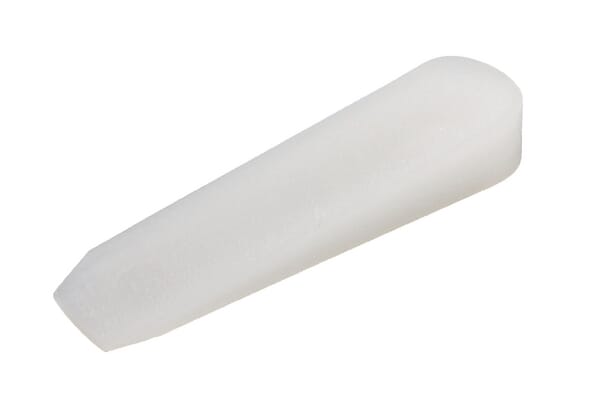

Fischer Centring wedge FISCW
£2.86 excl.
£3.43 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000116850

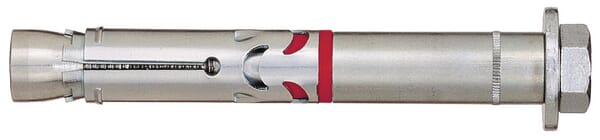

Fischer Anchor FH II 15/10S hexagonal head 25x 44887
£234.81 excl.
£281.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000139575
Fischer Plug Duopower 12x60 4pcs 537654
£5.87 excl.
£7.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000143670
Fischer FAZ II Plus 12/30 EV (12X130) 20pcs 564588
£53.82 excl.
£64.58 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000173727

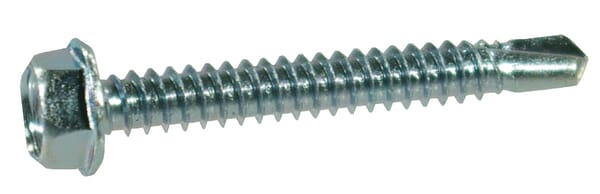

Kramp Self tapping screw 4.8x38mm, 8mm flange hex head, DIN 7504 7504K4838P200
