£53.82
excl. VAT
£64.58 incl. VAT
£64.58
incl. VAT
£53.82 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Drill hole diameter | 12 mm |
| ETA seismic rating | C1, C2 |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| Fire resistance class according to EN 13501-2 | EI120 |
| Fire resistant | Yes |
| Length | 130 mm |

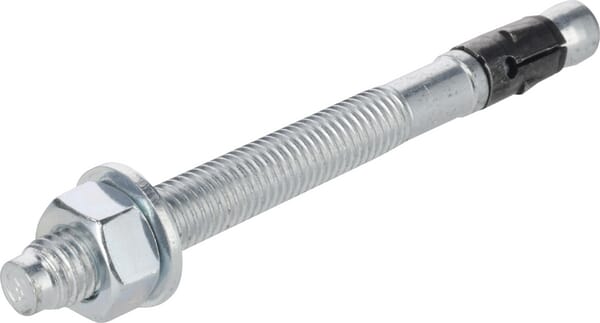

| Long description | The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile loads for a wide range of applications. The steel anchor can be used to secure heavy loads in cracked concrete. |
| Manufacturer Product ID | 564588 |
| Material anchor | Steel |

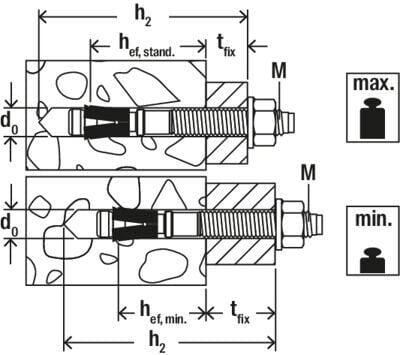

| Max. clamping thickness | 30 mm |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |
| Product details | With the new ETA certification, tensile strengths have increased significantly, thus requiring fewer attachment points and anchors, The quick assembly of the FAZ II Plus offers an efficient fastening solution for dynamic applications, Independent external assessment guarantees lifespan of up to 120 years, The variable anchoring depth allows precise adjustment to the load down to the millimetre |
| Pros | The FAZ II Plus is easier and faster to fit due to the elimination of borehole cleaning (applies to M8 - M24), The tried-and-tested spreader clip safely transfers loads into the concrete and enables an immediate, high load-bearing capacity, For example, the steel anchor is ideally suited for anchoring railings, heavy cable ducts and consoles |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Surface protection anchor | Electrolytic galvanized |
| Thread diameter | M12 |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 19.0 mm |
Logistics
| EAN | 4048962462135 |
|---|---|
| Unit of measure | BOX |
| Weight | 2343 g |
| Dimensions | 180 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000139144
Fischer Plug Duopower 5x25 S 50pcs 535458
£9.86 excl.
£11.83 incl.
In stock
Expected to ship on Monday 21 September
BPA000139572

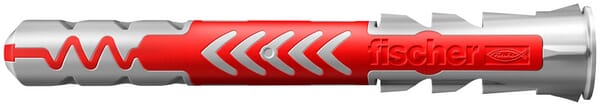

Fischer Plug Duopower 6x50 8pcs 537650
£7.37 excl.
£8.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000139886

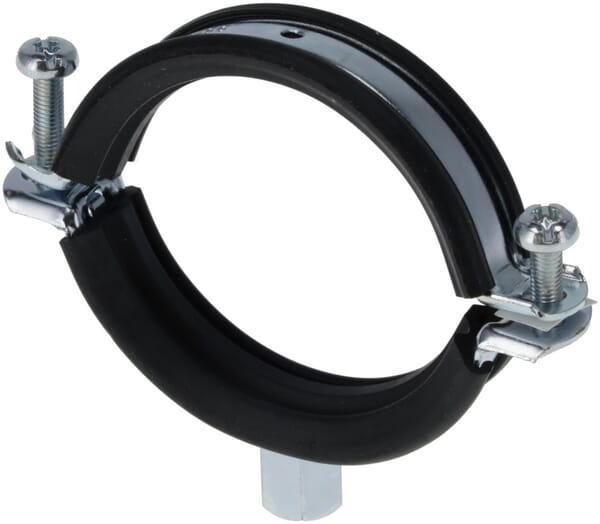

Fischer Pipe clamp FRS-L 60-66 8/10 10pcs 539452
£27.11 excl.
£32.53 incl.
In stock
Expected to ship on Monday 21 September
BPA000118428

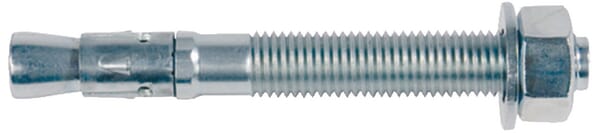

Fischer Bolt anchor FBN II 12/120 zinc plated 20x 45267FIS
£93.27 excl.
£111.92 incl.
In stock
Expected to ship on Monday 21 September
BPA000266687
Fischer Anchor pin FBN II 12X50 FBN21250
£3.61 excl.
£4.33 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000174385

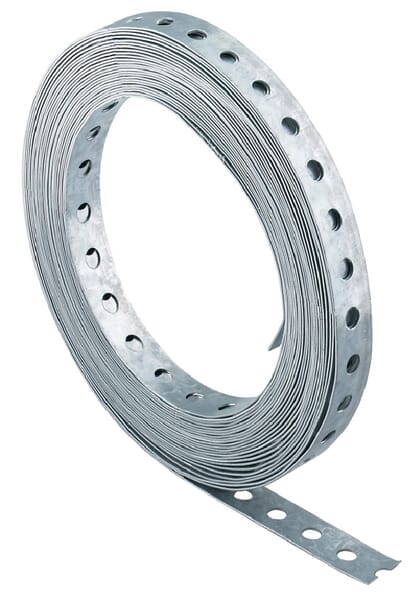

Fischer Perforated banding LBV12 10x 79549
£149.63 excl.
£179.56 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000372424

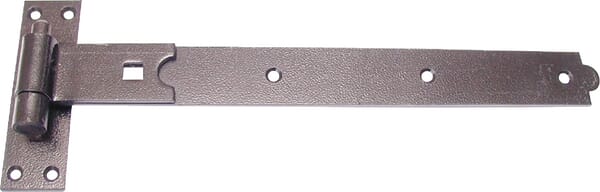

Unbranded Straight Hook and Bands 300mm 12" Black TO8296A
£7.31 excl.
£8.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268466
Non Original Glas fiber band, 3 x 100 mm EX93100500
£44.21 excl.
£53.05 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000320588
gopart Control valve MBV5/4-A1A1A1A1-KZ1 MBV54001GP
£176.24 excl.
£211.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000205425
Kramp Threaded rod M20x2.50x1m steel 8.8 DIN 975 97520B
£8.33 excl.
£10.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000054332

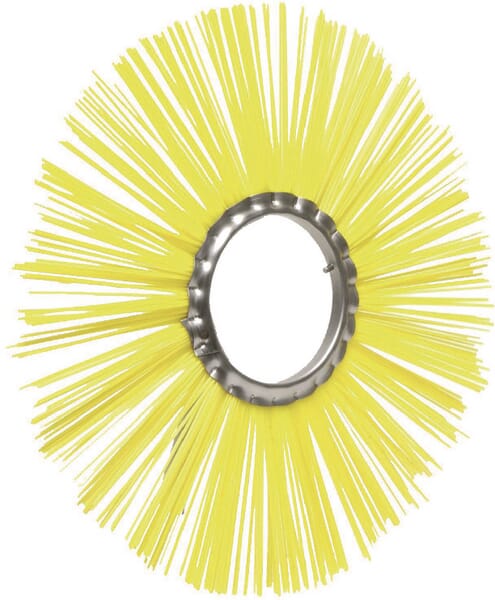

Kramp Rotary brush poly 400x5" 128 yellow diameter 2.2mm 1715105400
