£62.39
excl. VAT
£74.87 incl. VAT
£74.87
incl. VAT
£62.39 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Content in sale unit | 10 pcs |
|---|---|

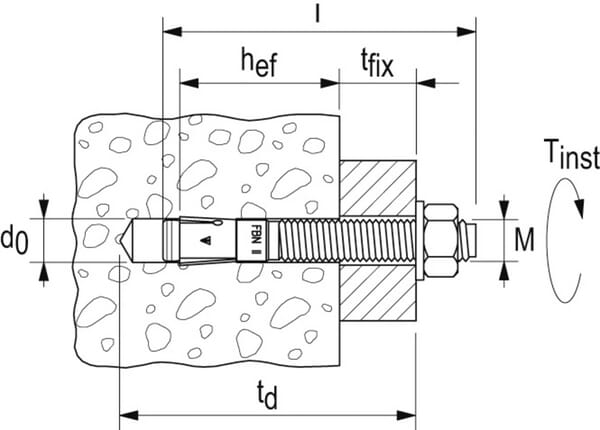

| d0Drill hole diameter | 16 mm |
| hefEffective anchorage depth | 80 mm |
| Length | 170 mm |
| Material anchor | Steel |
| Product details | The fischer FBN II anchor is a steel anchor for cost-effective fastenings in non-cracked concrete. Thanks to its long thread and two anchoring depths, the fischer FBN II anchor is particularly flexible. The bolt anchor is also suitable for stand-off installation, as well as pre-positioned and push-in installation. The galvanized steel version of the bolt anchor is suitable for fastening railings, walkways, and brackets in interior areas., The standard anchoring depth achieves maximum load-bearing capacities. This requires fewer fixing points and smaller anchor plates., The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility., The drive pin protects the thread from damage, thus ensuring faster installation and disassembly of the anchor., The reduced anchoring depth reduces the depth of the drill hole. This minimizes installation time while increasing flexibility., Few hammer blows and minimal torque slippage make installation significantly easier. |
| Surface protection anchor | Zinc-plated |
| tdMin. drill hole depth | 154 mm |
| tfixMax. clamping thickness | 50 mm |
| Thread diameter | M16 |
| Thread length | 105 mm |
| Unit | Box |
| Wrench/spanner size | 24.0 mm |
Logistics
| EAN | 4006209455654 |
|---|---|
| Unit of measure | BOX |
| Weight | 2650 g |
| Dimensions | 230 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000139145

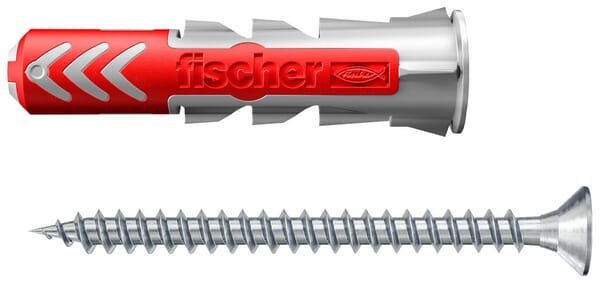

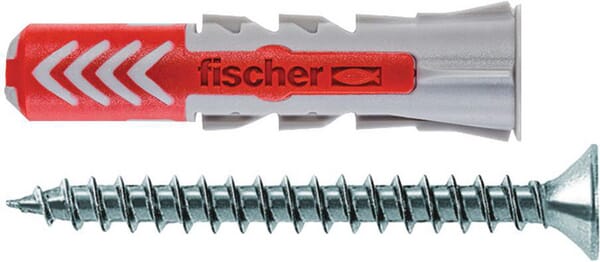

Fischer Plug Duopower 6x30 S 50pcs 535459
£11.35 excl.
£13.62 incl.
In stock
Expected to ship on Thursday 24 September
BPA000139256
Fischer Concrete screw FBS II 8x70 50pcs 536852
£57.75 excl.
£69.30 incl.
In stock
Expected to ship on Thursday 24 September
BPA000297124

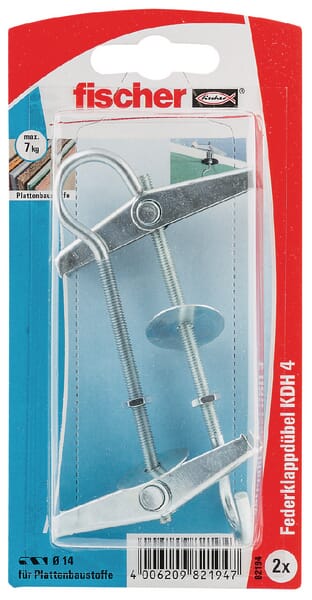

Fischer Spring clap plug+round h. 2 KDH4K
£11.00 excl.
£13.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000111762
Fischer Inject.sleeve FIS H16x130 K plastic 20x 41903FIS
£23.46 excl.
£28.15 incl.
In stock
Expected to ship on Thursday 24 September
BPA000143397

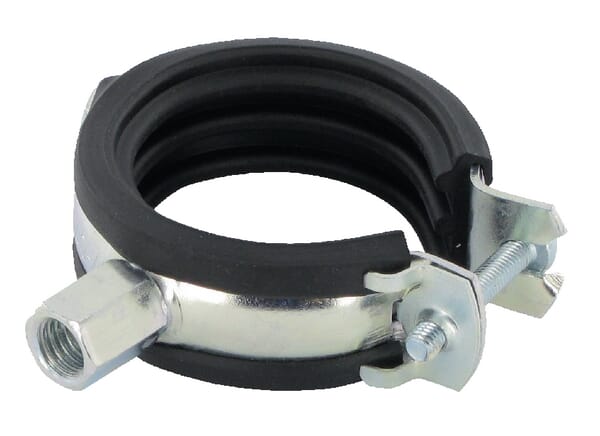

Fischer Pipe clamp FGRS Plus 60-66 8/10 10pcs 562357
£36.37 excl.
£43.64 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000130329

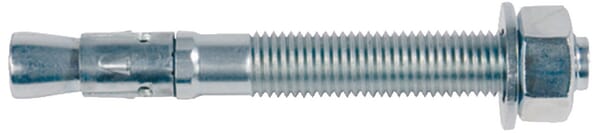

Fischer Bolt anchor FBN II 10/10R stainless steel 50x 507558
