£41.29
excl. VAT
£49.55 incl. VAT
£49.55
incl. VAT
£41.29 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Anchor model | External thread |
|---|---|
| Bracing | Split anchor |
| Drill hole diameter | 12 mm |
| ETA seismic rating | C1, C2 |
| Fastening by expander tool | No |
| Fastening provision | Nut |
| Fire resistance class according to EN 13501-2 | EI120 |
| Fire resistant | Yes |
| Length | 90 mm |

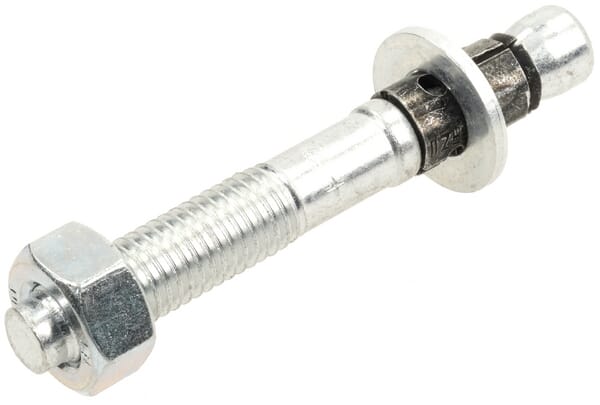

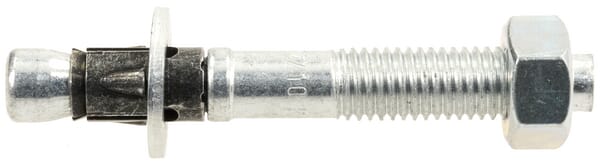

| Long description | The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile loads for a wide range of applications. The steel anchor can be used to secure heavy loads in cracked concrete. |
| Manufacturer Product ID | 564674 |
| Material anchor | Steel |
| Max. clamping thickness | 10 mm |
| Number of nuts | 1 |
| Number of washers | 1 |
| Pre-positioned installation | Yes |

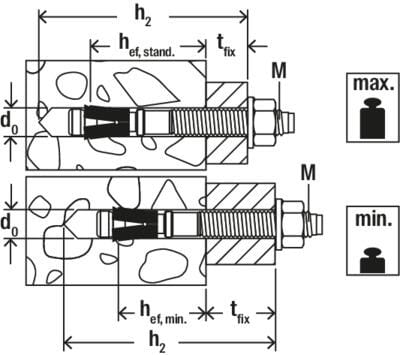

| Product details | With the new ETA certification, tensile strengths have increased significantly, thus requiring fewer attachment points and anchors, The quick assembly of the FAZ II Plus offers an efficient fastening solution for dynamic applications, Independent external assessment guarantees lifespan of up to 120 years, The variable anchoring depth allows precise adjustment to the load down to the millimetre |
| Pros | The FAZ II Plus is easier and faster to fit due to the elimination of borehole cleaning (applies to M8 - M24), The tried-and-tested spreader clip safely transfers loads into the concrete and enables an immediate, high load-bearing capacity, For example, the steel anchor is ideally suited for anchoring railings, heavy cable ducts and consoles |
| Push-through installation | Yes |
| Screwing system | Outside hexagon |
| Spaced installation | No |
| Suitable for hollow core slab | No |
| Surface protection anchor | Electrolytic galvanized |
| Thread diameter | M12 |
| Thread type | Metric |
| Unit | Box |
| With collar | No |
| Wrench/spanner size | 19.0 mm |
Logistics
| EAN | 4048962462999 |
|---|---|
| Unit of measure | BOX |
| Weight | 1785 g |
| Dimensions | 180 × 90 × 90 mm |
| Dangerous goods | No |
