£41.51
excl. VAT
£49.81 incl. VAT
£49.81
incl. VAT
£41.51 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connection size, connection facility | M8, M10 |
|---|---|
| Content in sale unit | 25 pcs |
| Manufacturer Product ID | 539444 |
| Material | Ethylene propylene diene monomer [EPDM] |
| Max. working diameter | 15 mm |
| Max. working temperature | 100 °C |
| Min. working diameter | 12 mm |
| Min. working temperature | -40 °C |
| Mounting plate width | 18 mm |
| Nominal diameter | 1/4 Inch |

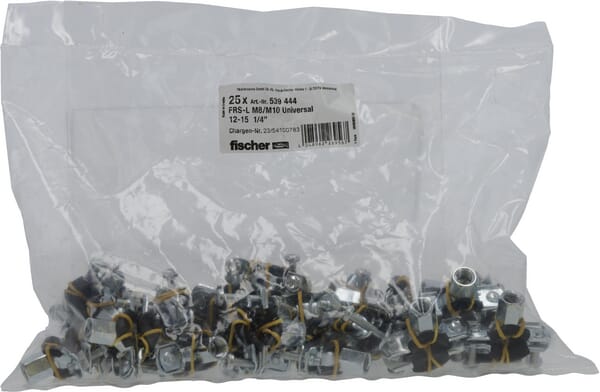

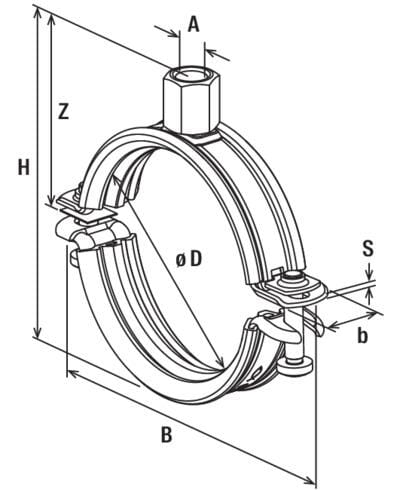

| Product details | The fischer pipe clamp FRS-L Universal is a two-screw zinc-plated steel clamp made from DD11-quality material with an M8/M10 combination connecting thread, The fire inspection report and the sound insulation report guarantee objectively tested functional safety, The clamp band with crimped edges gives a tight fit of the sound insulation insert and prevents it from slipping out when aligning the pipe, The unique rapid-locking mechanism with crimped edges allows a secure and time-saving installation, The two screws allow a perfect adaptation of the pipe clamp to suit every outer pipe diameter, The screw's loss protection guarantees an easy installation, Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111, Zinc plating: electro zinc-plated, Connecting nut: resistance welded, M8 / M10 SW13, Locking screw: flat head screw with TX drive, Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free, Sound insulation: for DIN 4109, Temperature range: -40 °C to +100 °C, Hardness: 55 ± 5° Shore A, Fire behaviour: DIN 4102: Class B2 |
| Surface treatment | Zinc-plated |
| Thickness | 1 mm |
| Unit | Box |
| Width | 20 mm |
Logistics
| EAN | 4048962269567 |
|---|---|
| Unit of measure | BOX |
| Weight | 937 g |
| Dimensions | 300 × 195 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000138808
Fischer Concrete screw FBS II 6x80 US 100pcs 546392
£73.49 excl.
£88.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000130327
Fischer Bolt anchor FBN II 8/30R stainless steel 50x 507556FIS
£328.83 excl.
£394.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000273501

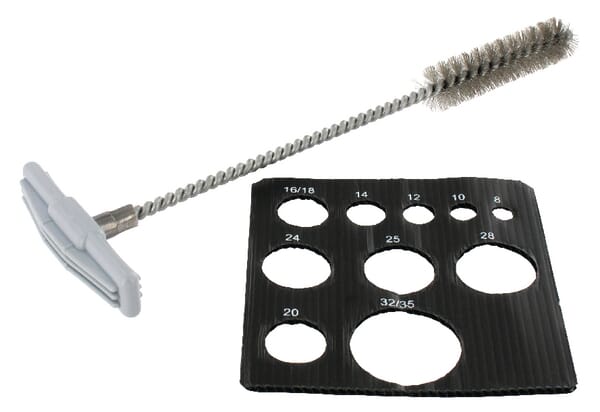

Fischer Round steel brush for hole diameter 16-18 FISBS18
£40.44 excl.
£48.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000139783

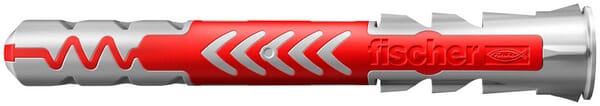

Fischer Plug Duopower 6x50 box 100pcs 538250
£15.63 excl.
£18.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000118910

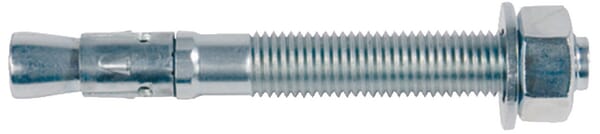

Fischer Bolt anchor FBN II 20/80 zinc plated 10x 45575
£174.87 excl.
£209.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000317475

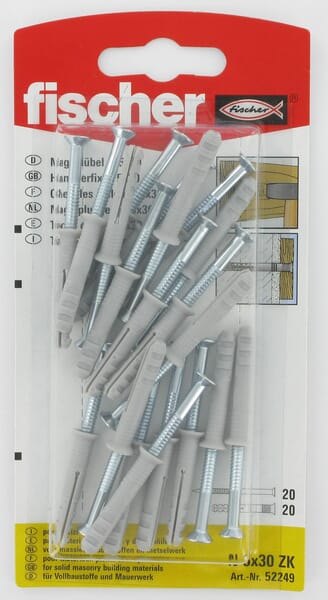

Fischer Nail plug+screw 20 N530ZK
