£172.94
excl. VAT
£207.53 incl. VAT
£207.53
incl. VAT
£172.94 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

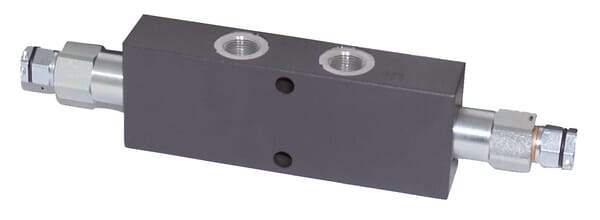

Product details
| Adjustable pressure range | 80-350 BAR |
|---|---|
| Body length | 150 mm |
| Connections distance - long | 112 mm |
| Connections distance - short | 48 mm |
| Connections thread diameter | 1/2 Inch |
| Designed for medium | Hydraulic oil |
| Includes | Cartridge, Steel housing |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 4 |
| Pilot ratio | 1:4.25 |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Sealing material | Buna-N |
| Standard pressure setting | 280 BAR |
| Surface treatment | Zinc-plated |
| Total height | 65 mm |
| Total length | 246 mm |
| Total width | 35 mm |
| Type | Double |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2488 g |
| Dimensions | 235 × 66 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279515
FluidPress Counter balance OMS FPO 65 DF D3 1/2 U 35 FPO65DFD312U35
£233.92 excl.
£280.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279438

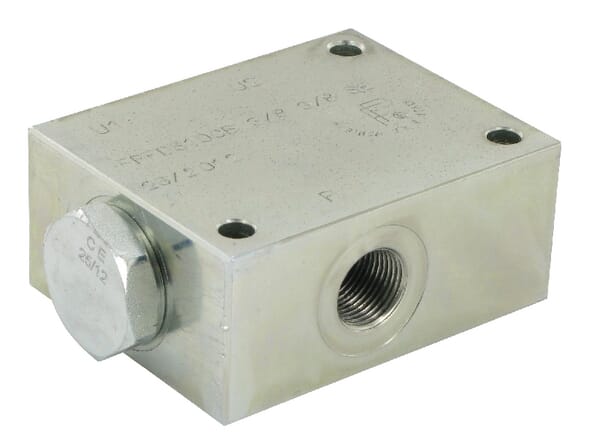

FluidPress Flow divider 5–10 L 3/8 ST FPFDS10CB38E38ST
£213.55 excl.
£256.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279499

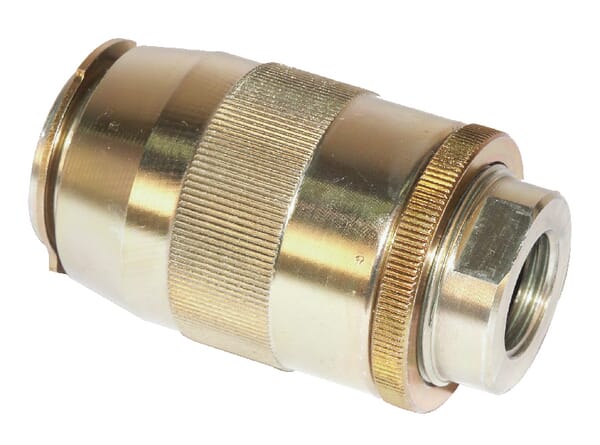

FluidPress Throttle check valve S-16-D-1" FPMU25001
£139.51 excl.
£167.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000310201

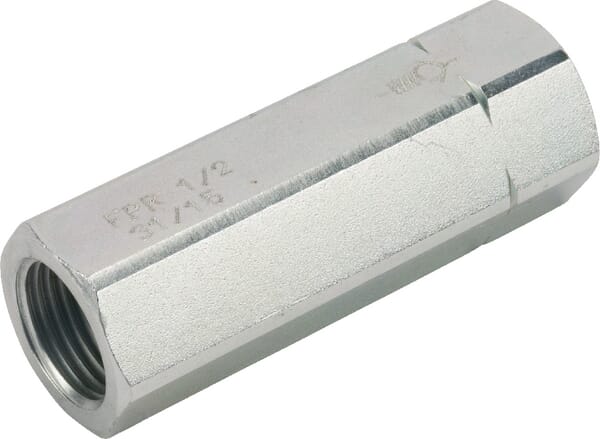

FluidPress Check valve S 08 (10bar) LCV10003
£18.35 excl.
£22.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279547

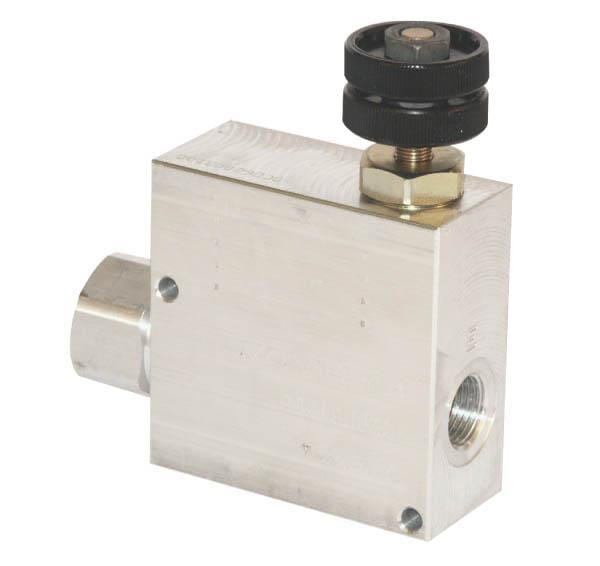

FluidPress Flow control 3 Way FPRF 3/8 K FPRF38K
