£103.50
excl. VAT
£124.20 incl. VAT
£124.20
incl. VAT
£103.50 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

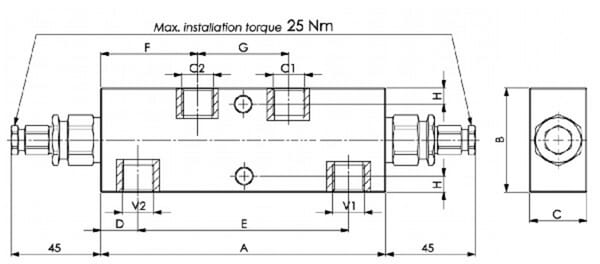

| Adjustable pressure range | 80-350 BAR |
|---|---|
| Body length | 150 mm |
| BTotal height | 55 mm |
| Connections thread diameter | 3/8 Inch |
| CTotal width | 30 mm |
| Designed for medium | Hydraulic oil |
| EConnections distance - long | 111 mm |
| GConnections distance - short | 48 mm |
| Includes | Cartridge, Steel housing |

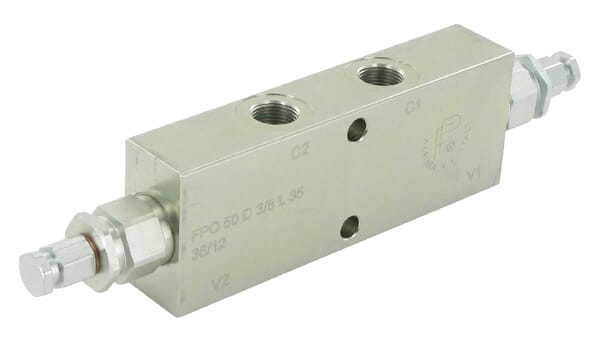

| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 4 |
| Pilot ratio | 1:4.25 |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Sealing material | Buna-N |
| Standard pressure setting | 280 BAR |
| Surface treatment | Zinc-plated |
| Total length | 246 mm |
| Type | Double |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1855 g |
| Dimensions | 245 × 55 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279524
FluidPress Counter balance valve double 3/8" FPOE15D38L35
£192.44 excl.
£230.93 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279505
FluidPress Counter balance valve double 3/8" FPO50D38LU20
£149.73 excl.
£179.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279503
FluidPress Counter balance valve double 3/8" FPO50D38L20
£137.28 excl.
£164.74 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279538

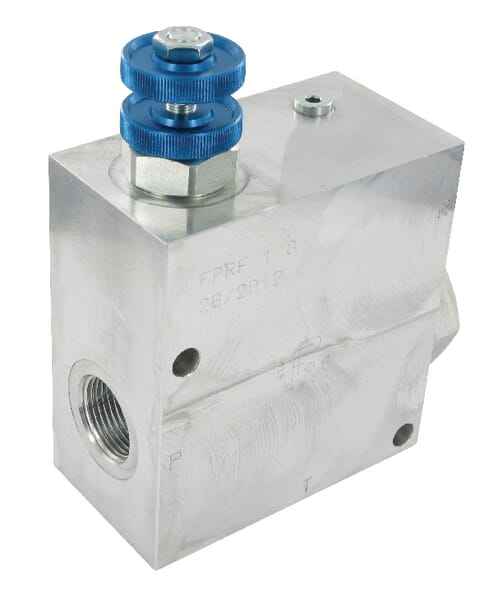

FluidPress Flow control 3-way valve 1" 150–240 FPRF1G
£338.77 excl.
£406.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279594
FluidPress Flow control valve 90–150 3 Way FPVP34G
£335.64 excl.
£402.77 incl.
In stock
Expected to ship on Friday 18 September
BPA000279564

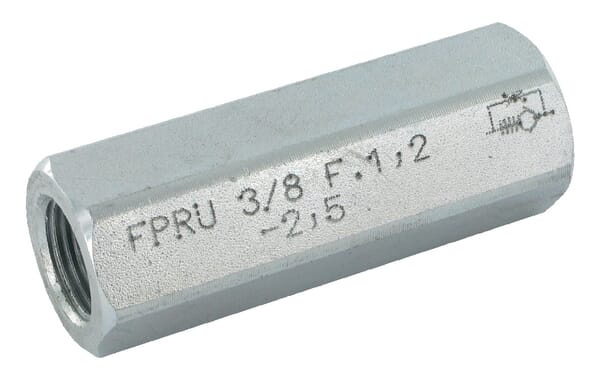

FluidPress Throttle check valve d=1.2 FPRU3825F12
