£66.77
excl. VAT
£80.12 incl. VAT
£80.12
incl. VAT
£66.77 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 5-50 BAR |
|---|---|

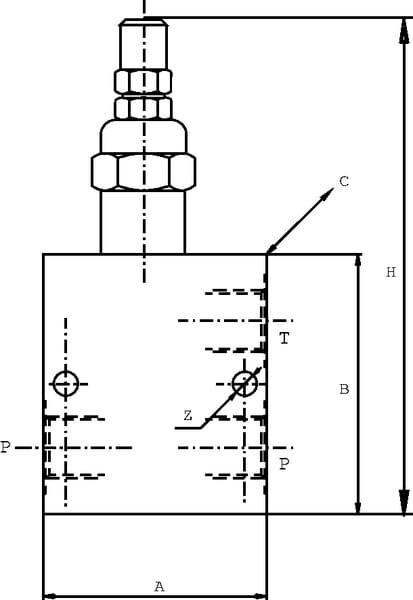

| AHousing length | 100 mm |
| Application range | For installation between lines, High pressure and moderate to high volume flow, For use as a pump safety device |
| BHousing height | 70 mm |
| CHousing width | 35 mm |
| Connection 2, type | Thread |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| Housing material | Aluminium |
| Max. flow rate | 40 l/min |
| Max working pressure | 210 BAR |

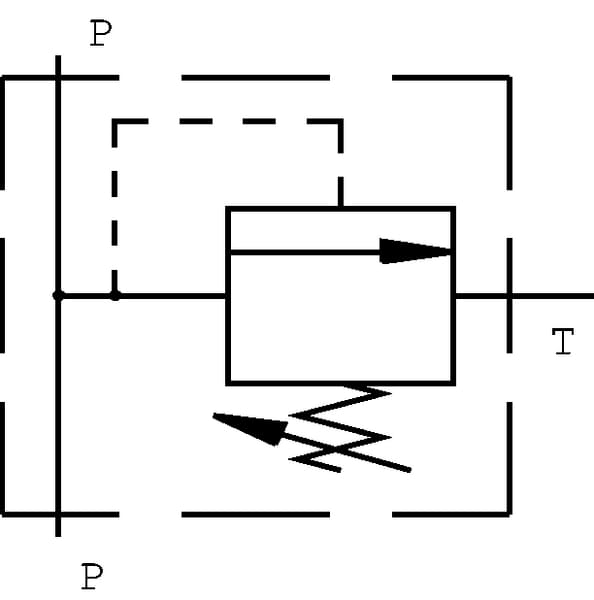

| Properties | Type: spring-loaded valve, direct control, Opens from P to T, Intermittent fast-reacting circuit |
| Standard pressure setting | 30 BAR |
| Type | Blow-off valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 402 g |
| Dimensions | 120 × 50 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000279423

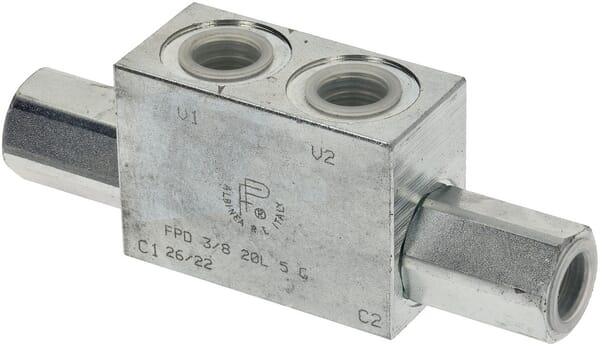

FluidPress Pilot Check valve FPD 3/8 20L 5 G FPD3820L5G
£30.55 excl.
£36.66 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279505

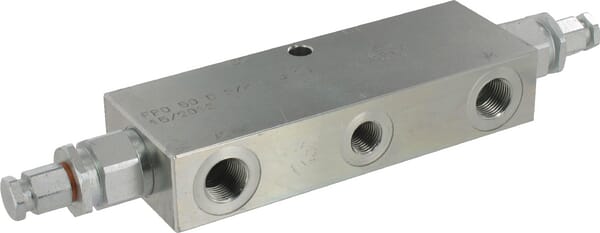

FluidPress Counter balance valve double 3/8" FPO50D38LU20
£149.73 excl.
£179.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000310906

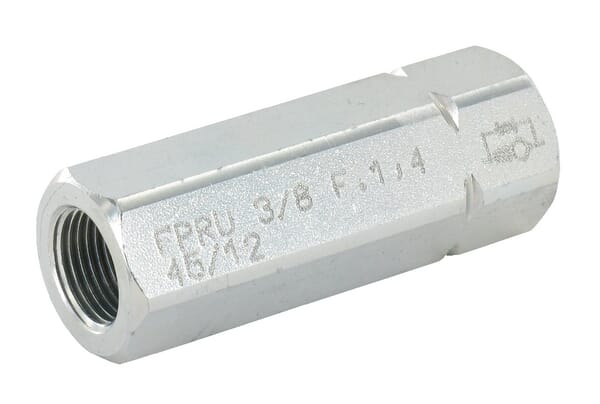

FluidPress Throttle ValveS-06-0,5-1,4-3/8 LTCV05001
£38.34 excl.
£46.01 incl.
In stock
Expected to ship on Monday 21 September
BPA000279591
FluidPress Throttle check valve M12-0,5-3/4 FPUN20001
£79.78 excl.
£95.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279419

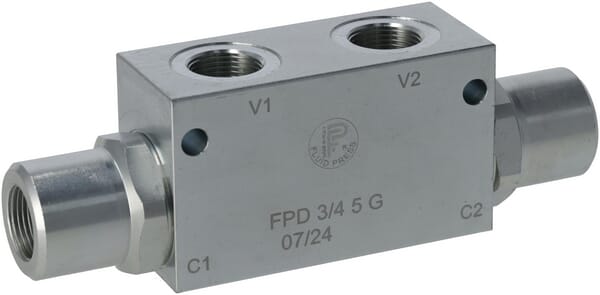

FluidPress Pilot Check valve FPD 3/4 5 G FPD345G
£159.05 excl.
£190.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000282529

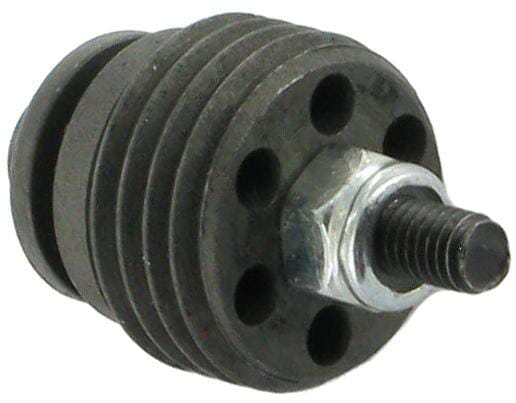

FluidPress Hose break valve VB-1/4" BSP HBV903
