£316.90
excl. VAT
£380.28 incl. VAT
£380.28
incl. VAT
£316.90 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Adjustment type | Socket screw |
|---|---|
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 1/2 Inch |
| Connection thread diameter | 1/4 Inch |
| Connection thread type | BSP |
| Connection type | Thread |
| Extra info | P1 = 10 L/min., P2 = 25 L/min., C= 30 l/min. |
| Housing material | Steel |
| Long description | A stop valve or Hi-low valve is used, for example, in presses or log splitters that use two parallel pumps, one of which is a high-flow, low-pressure pump, and a second low-flow, high-pressure pump. Both pumps deliver their combined flows to the consumer until the set pressure value is reached. From then on, the large pump will be relieved to the tank and the small pump will deliver its flow at high pressure. |
| Max. flow rate | 25 l/min |
| Max working pressure | 350 BAR |

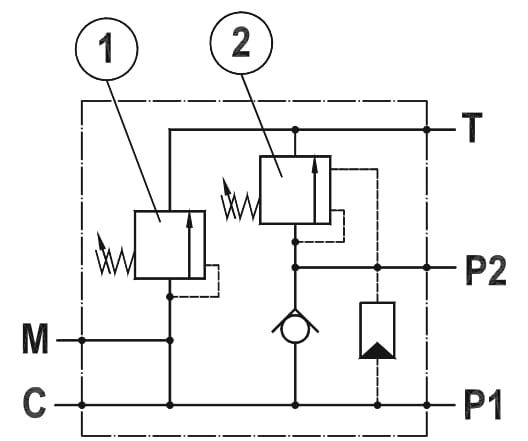

| Product details | P1 = high pressure connection, P2 = low pressure connection, M = pressure gauge connection, Pressure range 1 (bar): 80-350 bar, Pressure range 2 (bar): 20-100 bar |
| Pros | Low energy consumption, Lower power demand, Faster operations |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1282 g |
| Dimensions | 160 × 90 × 40 mm |
| Dangerous goods | No |
You might also like

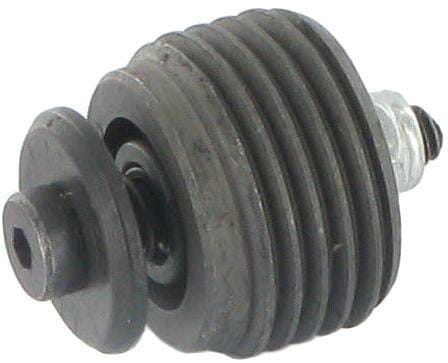

BPA000282535
FluidPress Hose break valve VB-1/2" BSP HBV910
£16.40 excl.
£19.68 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

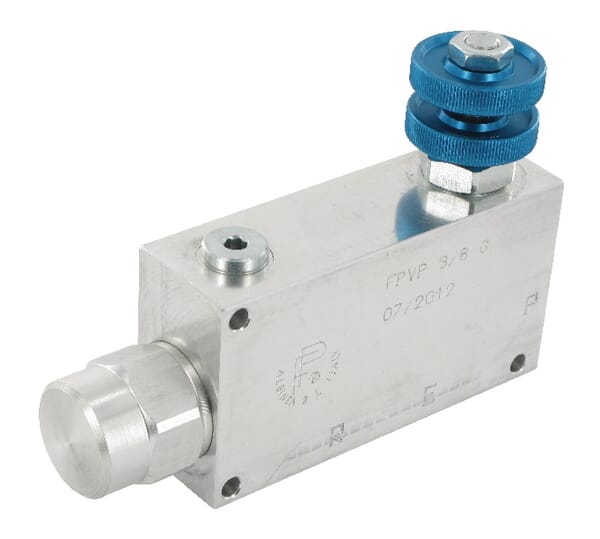

BPA000279596
FluidPress Flow control valve 30–50 L 3 Way FPVP38G
£211.67 excl.
£254.00 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

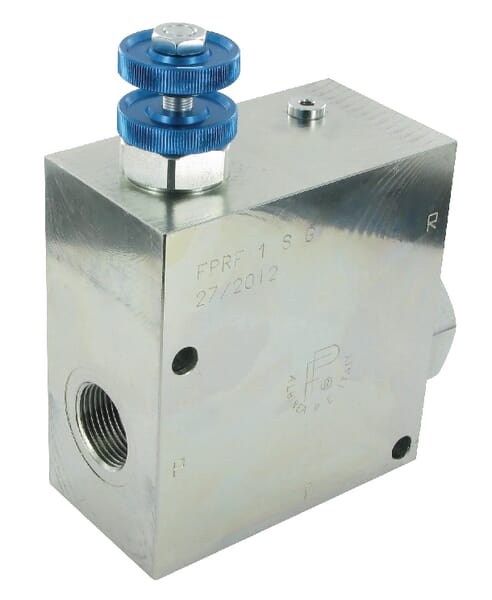

BPA000279539
FluidPress Flow control valve 1 150-240 l/min 3 Way FPRF1ST
£449.90 excl.
£539.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

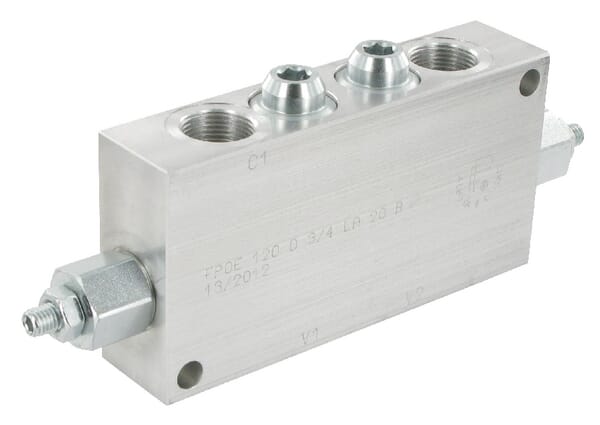

BPA000279521
FluidPress Counter balance valve double 3/4" FPOE120D34LA20B
£244.38 excl.
£293.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000282519
FluidPress Hose break valve F-04-S-10L/min 1/4 HBV03001
£13.94 excl.
£16.73 incl.
In stock
Expected to ship on Friday 18 September

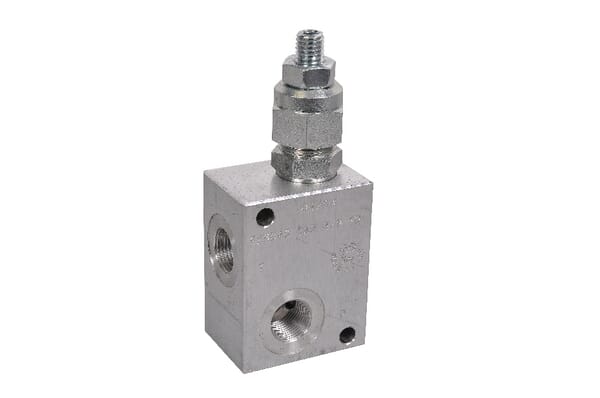

BPA000279476
