£25.36
excl. VAT
£30.43 incl. VAT
£30.43
incl. VAT
£25.36 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

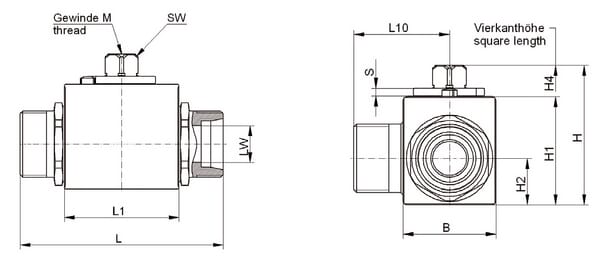

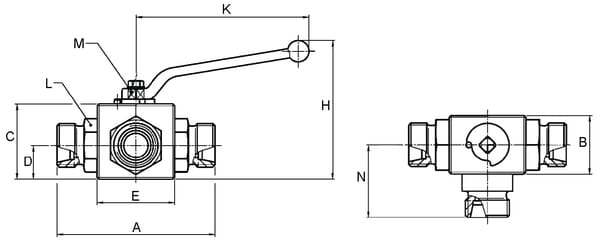

| ATotal length | 74 mm |
|---|---|
| CHousing height | 40 mm |
| Connection 2, wrench/spanner size | 9.0 mm |
| Connection thread diameter | M18 |
| Connection type | Thread |
| Dedicated pipe diameter | 12 mm |
| EHousing length | 42 mm |
| Housing width | 32 mm |
| Max working pressure | 500 BAR |
| Nominal inner diameter | 10 mm |
| Number of ports | 3 |
| Number of positions | 2 |
| Product details | L bore, Never close middle connection, Only use the middle connection as the 'P' connection, The ball is clamped between 2 pre-tensioned seal rings |

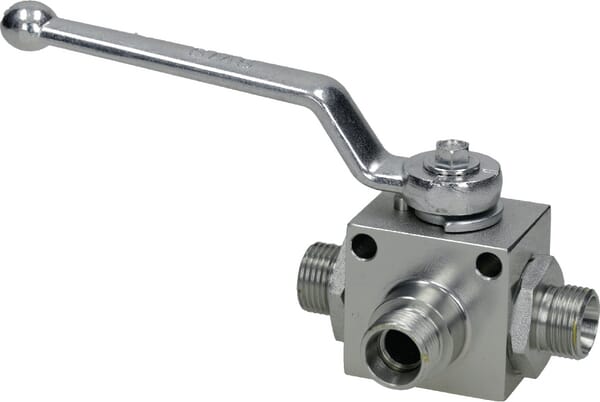

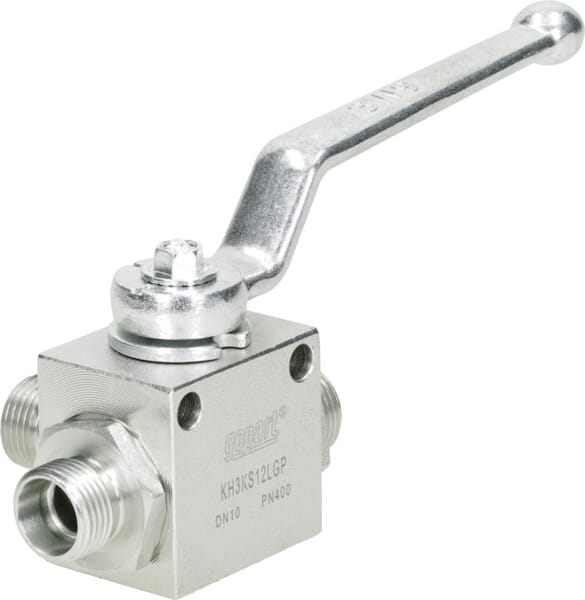

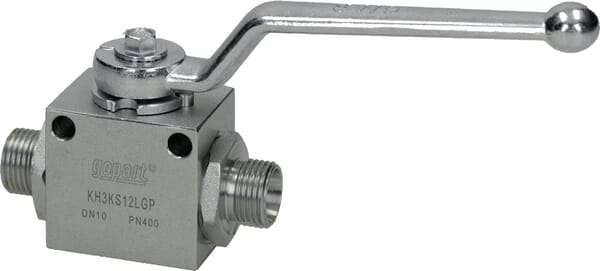

| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607125864 |
|---|---|
| Unit of measure | EA |
| Weight | 558 g |
| Dimensions | 170 × 80 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000281639

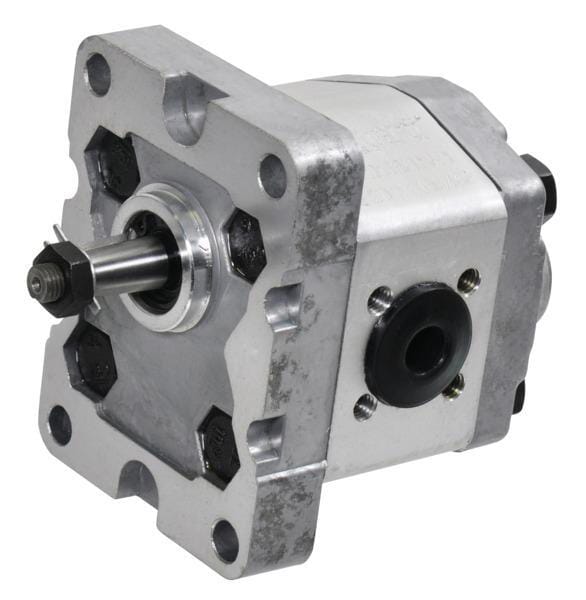

gopart Gear pump Gr1 5cc S C18E GP105S3030C18EGP
£99.40 excl.
£119.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000150917
gopart Nylon cord 2mm x 100m 602100GP
£5.12 excl.
£6.14 incl.
In stock
Expected to ship on Friday 18 September
BPA000367678
gopart R Pin SP3150639
£0.18 excl.
£0.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000343175

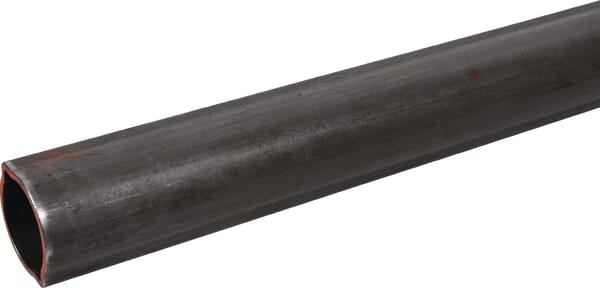

gopart Profile tube outer lemon L22 diameter in: 35.2 diameter out: 41x41x2.9mm L: 3m PTO9L22OPT3000GP
£100.39 excl.
£120.47 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000268307
gopart Swivel elbow 90° M18x1.5 12L 50pcs EWSD12LP050GP
£147.58 excl.
£177.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000081714

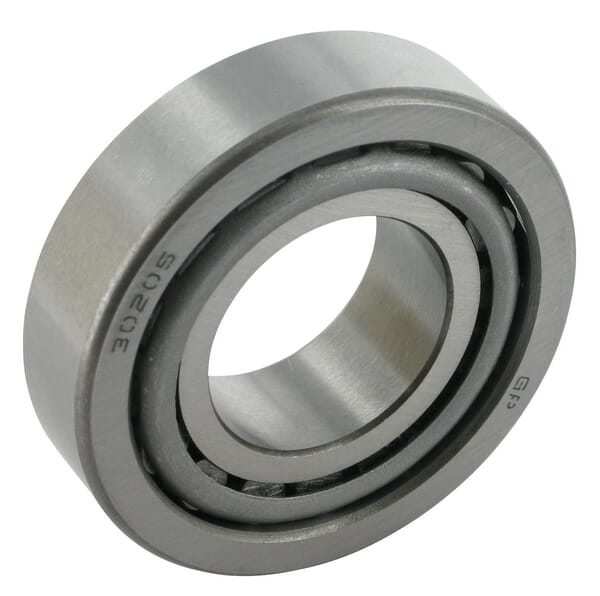

gopart Tapered roller bearing 25x52x16.25mm 30205GP
