£161.69
excl. VAT
£194.03 incl. VAT
£194.03
incl. VAT
£161.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |
| Long description | The gopart MBV5 is a versatile and widely used monoblock valve for medium-flow hydraulic systems. Suitable for a range of applications in agriculture, landscaping, and municipal machinery, it offers multiple spool configurations and can be equipped with mechanical, pneumatic, or cable control kits. Commonly found on tractors, log splitters, and tipping trailers. |
| Max. flow rate | 50 l/min |
| Max. leakage | 5 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | MBV5 A1V-A1V-A1V-G |

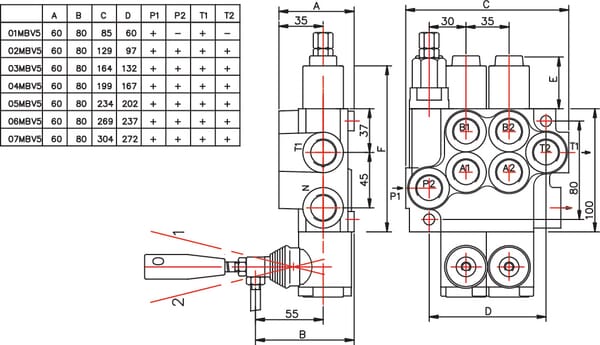

| Mounting holes distance | 132 mm |
| Number of sections | 3 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/8 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 50L/min., Maximum operating pressure : 300 bar, Main pressure relief valve and check valve in P-channel, Safety adjusted to 180 bar |
| Sealing material | Nitrile rubber [NBR] |

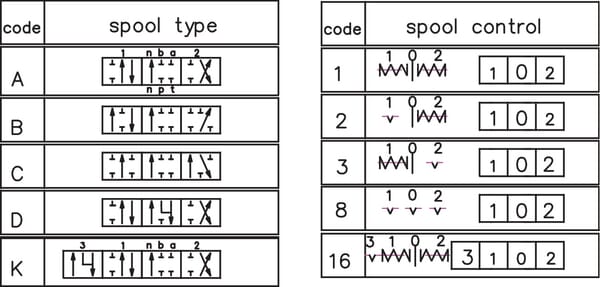

| Spools and detends code | A-1V + A-1V + A-1V |
| Spools and detends description | 3x double-acting, spring return |
| Tank port T - Thread diameter | 1/2 Inch |
| Tank port T - Thread type | BSP |
| Total height | 60 mm |
| Total width | 164 mm |
| Type | Monobloc |
| Type actuation | Cable operated |
| Unit | Each |
| Valve series | MBV5 |
| Workports thread diameter | 3/8 Inch |
| Workports thread type | BSP |
Compatible accessories
Parts and components that work with this product.
AK95GP
gopart Assembly set for MBV5 AK95GP
£39.41 excl.
£47.29 incl.
IMCL60200B
Indemar Joystick without buttons IMCL60200B
£65.62 excl.
£78.74 incl.
IMCS1000
Indemar Cable for single lever 1,000mm IMCS1000
£35.83 excl.
£43.00 incl.
IMSL3076RL
Indemar Single lev c/w anti-revers lo IMSL3076RL
£47.60 excl.
£57.12 incl.
MBV95A16KR
Kramp Stopper 16 MBV 5 MBV95A16KR
£52.84 excl.
£63.41 incl.
MBV95A2KR

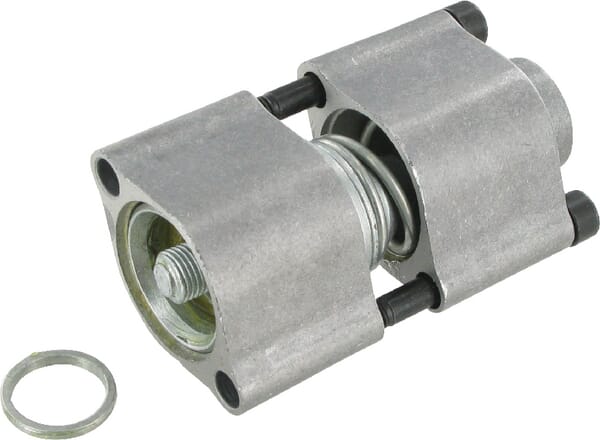

Kramp Stopper 2 MBV 5 MBV95A2KR
£23.04 excl.
£27.65 incl.
MBV95A3GP
gopart Stopper 3 MBV 5 MBV95A3GP
£30.84 excl.
£37.01 incl.
MBV95A3KR

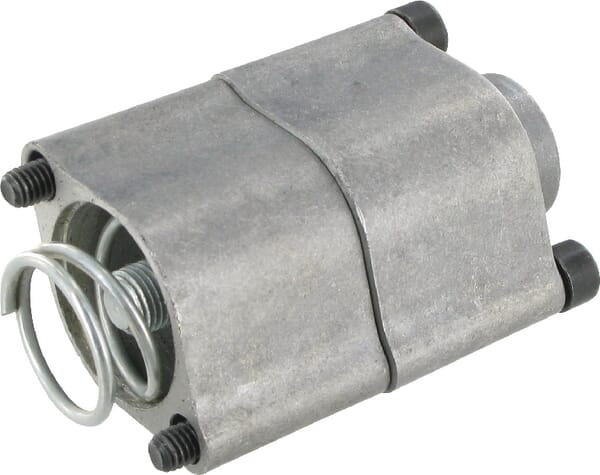

Kramp Stopper 3 MBV 5 MBV95A3KR
£23.04 excl.
£27.65 incl.
MBV95A8GP
gopart Stopper 8 MBV 5 MBV95A8GP
£24.48 excl.
£29.38 incl.
MBV95C2KR

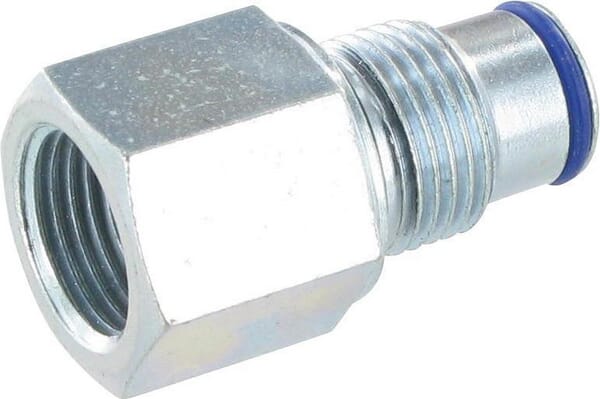

Kramp Power-Beyond connection MBV 5 MBV95C2KR
£8.66 excl.
£10.39 incl.

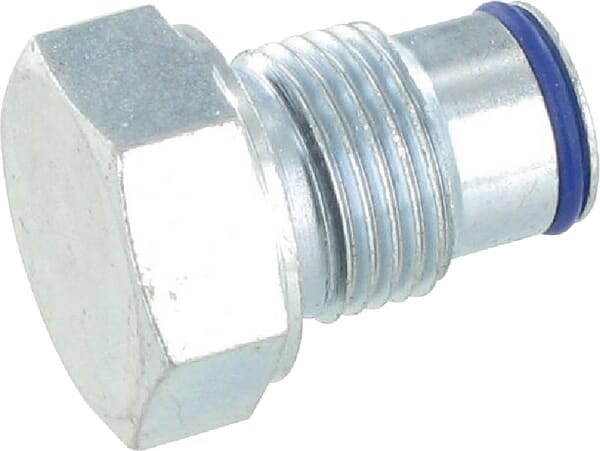

MBV95CKR
Kramp Closed-Center connection MBV 5 MBV95CKR
£8.66 excl.
£10.39 incl.
MBV95KZ1KR
Lever MBV 5 complete
Not currently stocked
MBV95PBKR

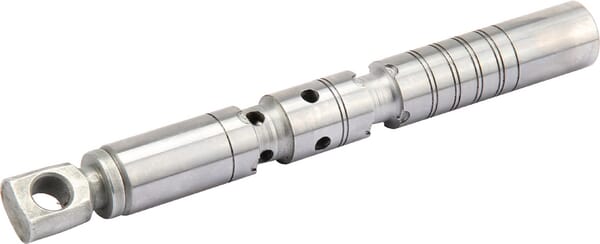

Kramp Piston B for MBV 5 MBV95PBKR
£45.74 excl.
£54.88 incl.
MBV95PCKR

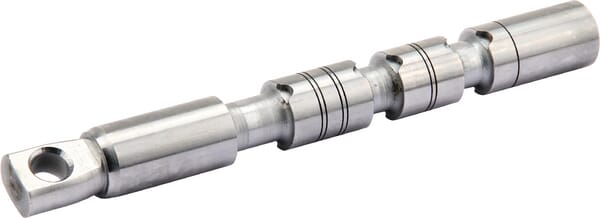

Kramp Piston C for MBV 5 MBV95PCKR
£32.22 excl.
£38.67 incl.

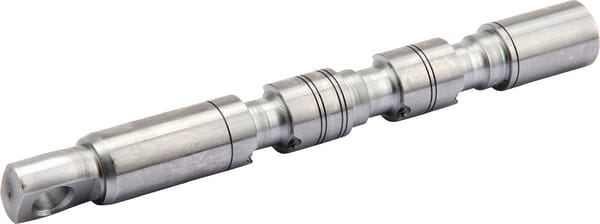

MBV95PDKR
Kramp Piston D for MBV 5 MBV95PDKR
£32.22 excl.
£38.67 incl.
MBV95PKGP
gopart Piston K for MBV 5 MBV95PKGP
£74.80 excl.
£89.76 incl.
MBV95PKKR
Kramp Piston K for MBV 5 MBV95PKKR
£59.42 excl.
£71.31 incl.
Logistics
| EAN | 8719607125703 |
|---|---|
| Unit of measure | EA |
| Weight | 5519 g |
| Dimensions | 289 × 190 × 70 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000320587
Kramp Control valve MBV5/3-A1V-A1V-A1V-G MBV53011KR
£179.65 excl.
£215.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000016676
gopart Cab bearing 04411234GP
£58.82 excl.
£70.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000239949
gopart Bearing 35x72x17mm CB207GP
£10.73 excl.
£12.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000281560
gopart Membrane Set GND29GP
£4.22 excl.
£5.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000320588
gopart Control valve MBV5/4-A1A1A1A1-KZ1 MBV54001GP
£176.24 excl.
£211.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000343133
gopart Overrunning clutch, PTO50 PTO950Y21ORCGP
£95.34 excl.
£114.41 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000270118

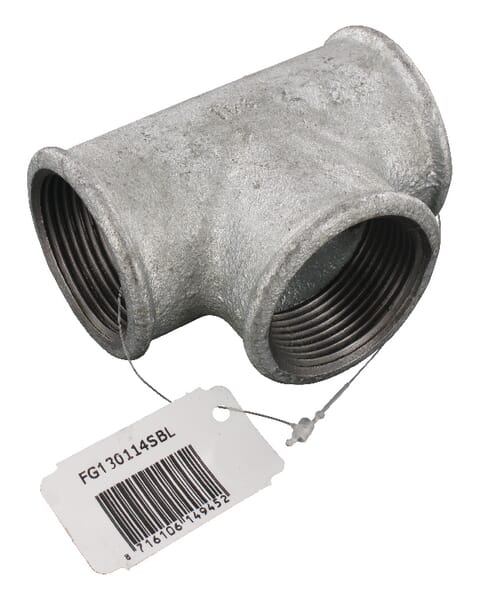

Kramp T piece zinc-plated 1 1/4" FG130114SBL
