£179.65
excl. VAT
£215.58 incl. VAT
£215.58
incl. VAT
£179.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

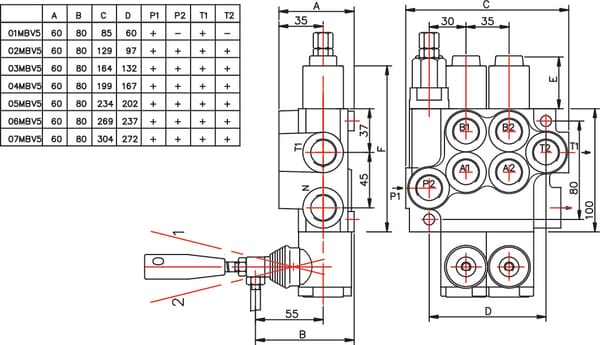

| Long description | The gopart MBV5 is a versatile and widely used monoblock valve for medium-flow hydraulic systems. Suitable for a range of applications in agriculture, landscaping, and municipal machinery, it offers multiple spool configurations and can be equipped with mechanical, pneumatic, or cable control kits. Commonly found on tractors, log splitters, and tipping trailers. |
| Max. flow rate | 50 l/min |
| Max. leakage | 5 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | MBV5 A1V-A1V-A1V-G |
| Mounting holes distance | 132 mm |
| Number of sections | 3 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/8 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 50L/min., Maximum operating pressure : 300 bar, Main pressure relief valve and check valve in P-channel, Safety adjusted to 180 bar |
| Sealing material | Nitrile rubber [NBR] |

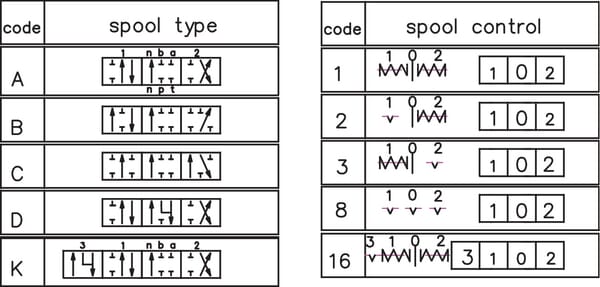

| Spools and detends code | A-1V + A-1V + A-1V |
| Spools and detends description | 3x double-acting, spring return |
| Tank port T - Thread diameter | 1/2 Inch |
| Tank port T - Thread type | BSP |
| Total height | 60 mm |
| Total width | 164 mm |
| Type | Monobloc |
| Type actuation | Cable operated |
| Unit | Each |
| Valve series | MBV5 |
| Voltage type | n/a |
| Workports thread diameter | 3/8 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8719493620368 |
|---|---|
| Unit of measure | EA |
| Weight | 8400 g |
| Dimensions | 250 × 250 × 95 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000320586
gopart Control valve MBV5/3-A1V-A1V-A1V-G MBV53011GP
£161.69 excl.
£194.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000297487
Kramp Skim board right hand KK066880N
£14.03 excl.
£16.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000133730

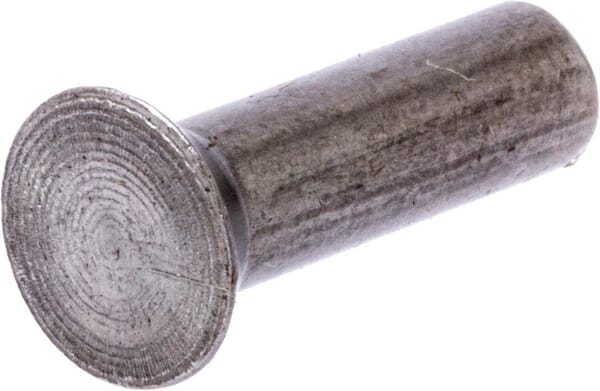

Kramp Rivets 0.5 kg pack 5x17 517V
