£234.62
excl. VAT
£281.54 incl. VAT
£281.54
incl. VAT
£234.62 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

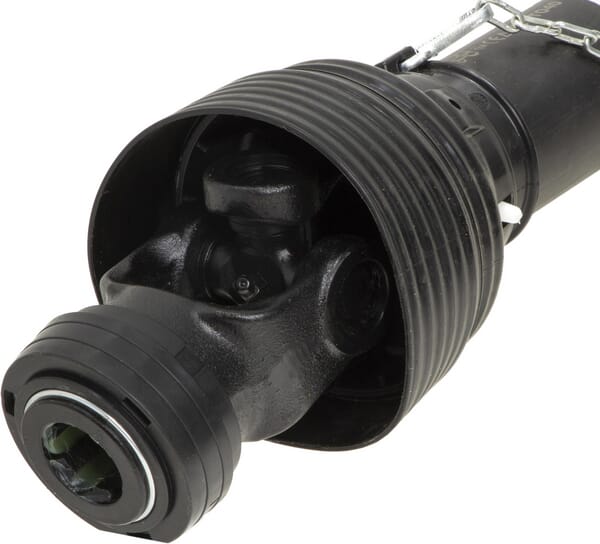

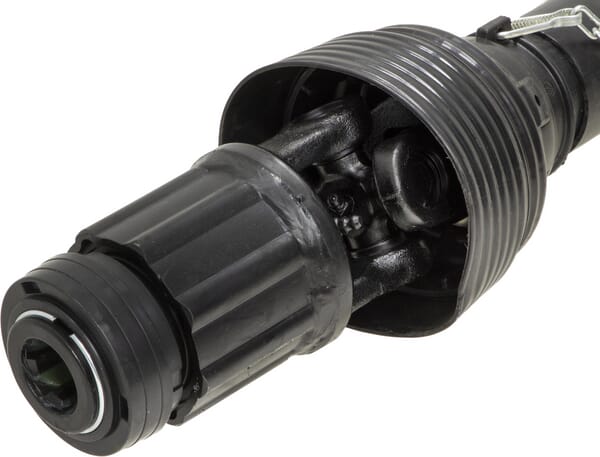

| Attachment machine side | Radial pin clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 3.2 mm |

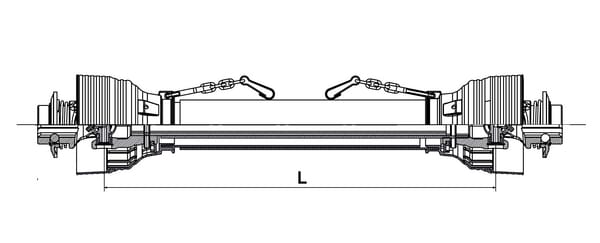

| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with attached radial pin clutches suitable for various agricultural machines |
| Max. clutch torque | 900 N·m |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | PTO20, Max. dynamic capacity 540 rpm: 15kW, Max. dynamic capacity 1000 rpm: 23kW, PTO40, Max. dynamic capacity 540 rpm: 26kW, Max. dynamic capacity 1000 rpm: 40kW, PTO50, Max. dynamic capacity 540 rpm: 35kW, Max. dynamic capacity 1000 rpm: 54kW, PTO60, Max. dynamic capacity 540 rpm: 47kW, Max. dynamic capacity 1000 rpm: 74kW |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Cost-effective alternative in lower power range, Meets all international safety requirements |
| Size code | PTO 20 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
PTO920Y21DY13821GP
gopart Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 20 PTO920Y21DY13821GP
£25.91 excl.
£31.09 incl.
PTO920Y21DY83238GP
gopart Yoke, Quick disconnect, 38x32mm -8 spline, PTO 20 PTO920Y21DY83238GP
£25.91 excl.
£31.09 incl.
PTO920Y21ORCGP

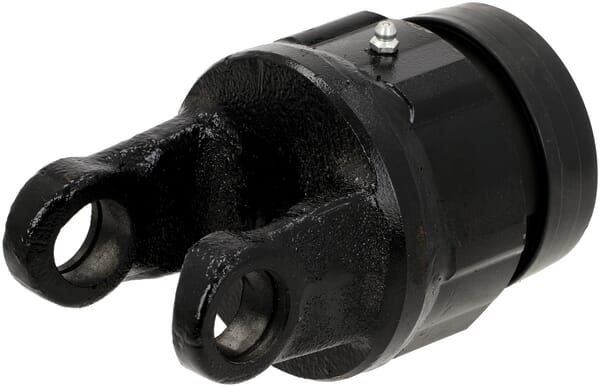

gopart PTO20 Overunning clutch PTO920Y21ORCGP
£86.36 excl.
£103.63 incl.
PTO910OPT1000GP

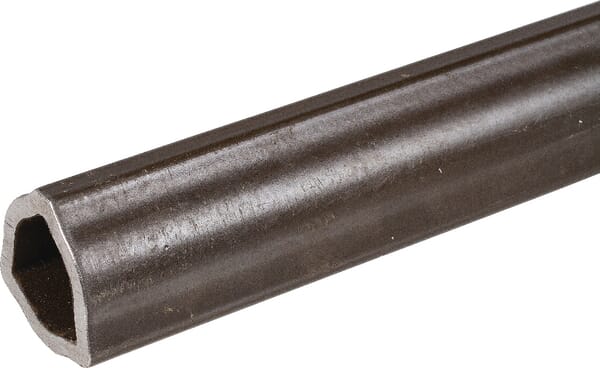

gopart Profile tube out/in 10-20 triangular 36x3,2mm L: 1m PTO910OPT1000GP
£31.12 excl.
£37.34 incl.
Logistics
| EAN | 8719493074901 |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 1165 × 160 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000343034
gopart PTO shaft PTO 20 L: 860mm with radial pin clutch, PTO20Y21T860M24GP
£213.37 excl.
£256.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000009028
gopart Hydraulic pump 11.3 ccm 01174516N
£173.73 excl.
£208.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310874
gopart Tyre filler LT404GP
£13.66 excl.
£16.39 incl.
In stock
Expected to ship on Friday 18 September
BPA000272771

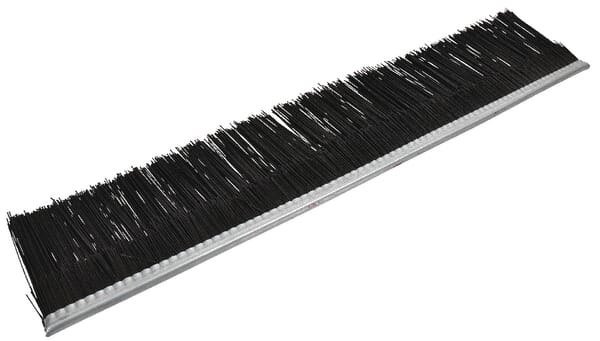

gopart Brush FGP455238GP
