£83.07
excl. VAT
£99.68 incl. VAT
£99.68
incl. VAT
£83.07 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 800 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |

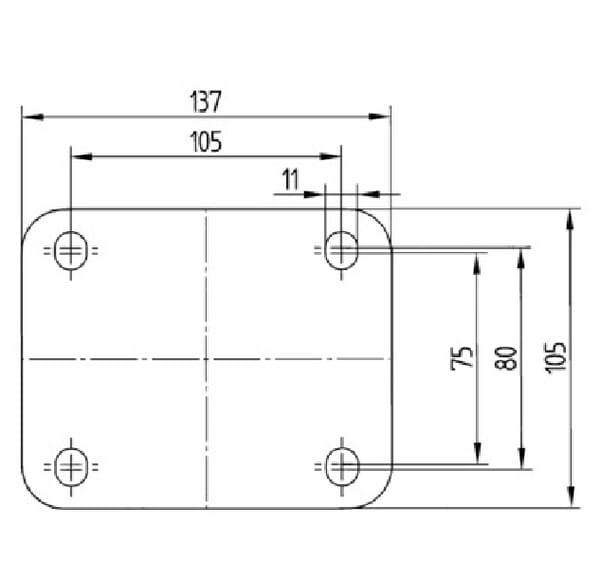

| Mounting holes diameter | 11 mm |
| Mounting holes distance | 75-80 mm |
| Mounting holes distance - length side | 105-105 mm |

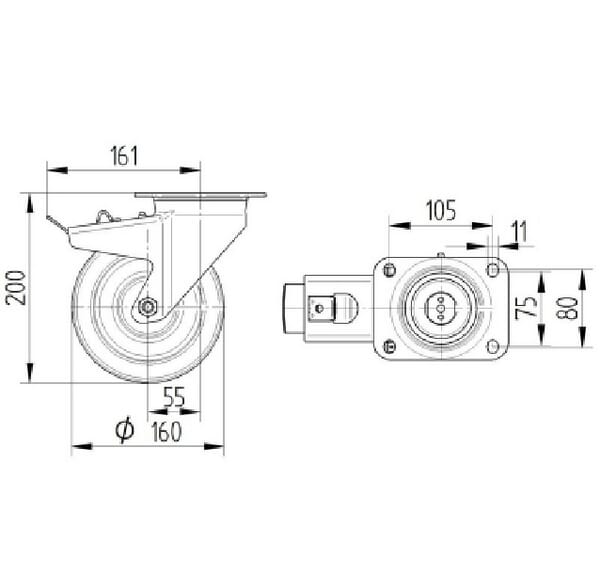

| Offset | 55 mm |
| Plate length | 137 mm |
| Plate width | 105 mm |

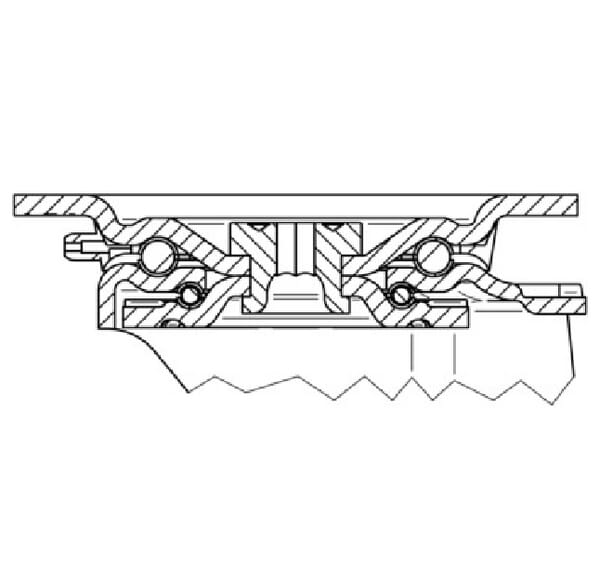

| Technical info | Swivel castor with total lock, tail end of castor, housing made of very heavy pressed steel, reinforced, bright zinc plated, blue passivated, sealed swivel double ball bearing, reinforced and heat-treated ball covers, riveted king pin, dust ring with integrated grease nipple, wheel axle with nut, plate fitting. Wheel centre made of Aluminium, Tread: Polyurethane, casted, precision ball bearing |
| Total height | 200 mm |
| Unit | Each |
| Weight | 3.484 kg |
| Wheel diameter | 160 mm |
| Wheel material | Polyurethane |
| Wheels type | Swivel wheel |
| Wheel width | 50 mm |
| With break | Yes |
Logistics
| EAN | 4031582050578 |
|---|---|
| Unit of measure | EA |
| Weight | 3275 g |
| Dimensions | 225 × 205 × 105 mm |
| Dangerous goods | No |
